467MP-0.5-5

Active

3M (TC)

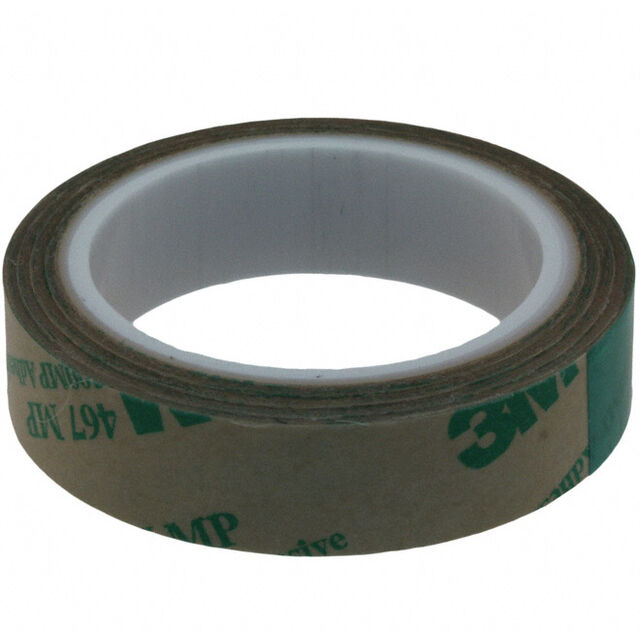

TAPE ADHSV TRNSFR CLR 1/2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

467MP-0.5-5

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X5YDS

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	467MP-0.5-5

Adhesive	Acrylic, 200MP
Backing, Carrier	Polycoated Kraft Liner
Color	Clear
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range [Max]	149 °C, 300 °F
Temperature Range [Min]	-40 °F
Thickness	0.0065 in
Thickness	6.5 mils
Thickness	0.165 mm
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.107 mm
Thickness - Backing, Carrier	0.0042 in
Thickness - Backing, Carrier	4.2 mils
Usage	High Temperature Applications, Attachment
Width	0.5 in
Width	12.7 mm
Width	0.5 in

467MP Series

...

Part	Thickness	Thickness	Thickness	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life	Length	Length	Length	Backing, Carrier	Width	Width	Width	Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Temperature Range [Min]	Temperature Range [Max]	Color	Width [x]	Width [x]	Width	Usage	Length [x]	Length [x]	Width [diameter]	Width [diameter]
3M (TC) 3M 467MP 0.313" X 60YD	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months	60 yds	55 m	180 ft	Polycoated Kraft Liner	0.3125 in	0.31 in	7.87 mm	Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear
3M (TC) 3M 467MP 6" X 7.25"-50	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months		184.15 mm	7.25 in	Polycoated Kraft Liner				Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear	6 in	152.4 mm
3M (TC) 467MP-9-5	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months	5 yd	4.6 m	15 ft	Polycoated Kraft Liner				Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear	9 in	228.6 mm
3M (TC) 467MP-0.188-60	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months	60 yds	55 m	180 ft	Polycoated Kraft Liner	4.78 mm		0.19 in	Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear			0.1875 in
3M (TC) 5-467MP-1				Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	24 Months				Polycoated Kraft Liner				Acrylic	70 °F	21 °C							General Purpose	25.4 mm	1 in	25.4 mm	1 in
3M (TC) 5-467MP-1-4R	0.002 in	2 mils	0.051 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	24 Months				Polycoated Kraft Liner				Acrylic	70 °F	21 °C				1 in	25.4 mm		General Purpose	101.6 mm	4 "
3M (TC) 3M 467MP 9.25" X 9.25"-25	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months		234.95 mm	9.25 inches	Polycoated Kraft Liner				Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear	9.25 in	234.95 mm
3M (TC) 467MP-0.5-5	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	24 Months	5 yd	4.6 m	15 ft	Polycoated Kraft Liner	0.5 in	0.5 in	12.7 mm	Acrylic 200MP	70 °F	21 °C	-40 °F	149 °C 300 °F	Clear				Attachment High Temperature Applications
3M (TC) 3M 467MP 5.75" X 5.75"-50	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months		146.05 mm	5.75 in	Polycoated Kraft Liner		5.75 in	146.05 mm	Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear
3M (TC) 3M 467MP CIRCLE-3.000"-100	0.0065 in	6.5 mils	0.165 mm	Date of Manufacture	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	0.0023 "	2.3 mils	0.058 mm	18 Months				Polycoated Kraft Liner				Acrylic 200MP	70 °F	21 °C	16 °C 60 °F	38 °C 100 °F	Clear	3 "	76.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.87
		10	$ 3.67
		25	$ 3.29
		50	$ 3.04
		100	$ 2.81
		250	$ 2.55
		500	$ 2.37
		1000	$ 2.21
		5000	$ 1.91

Description

General part information

467MP Series

Adhesive Transfer Tape Acrylic, 200MP Adhesive Clear 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds
