Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 33.47 | |
| 10 | $ 30.73 | |||
| 25 | $ 29.71 | |||
| 50 | $ 28.95 | |||
| 100 | $ 28.22 | |||
| 250 | $ 27.28 | |||
| 500 | $ 23.99 | |||
General part information

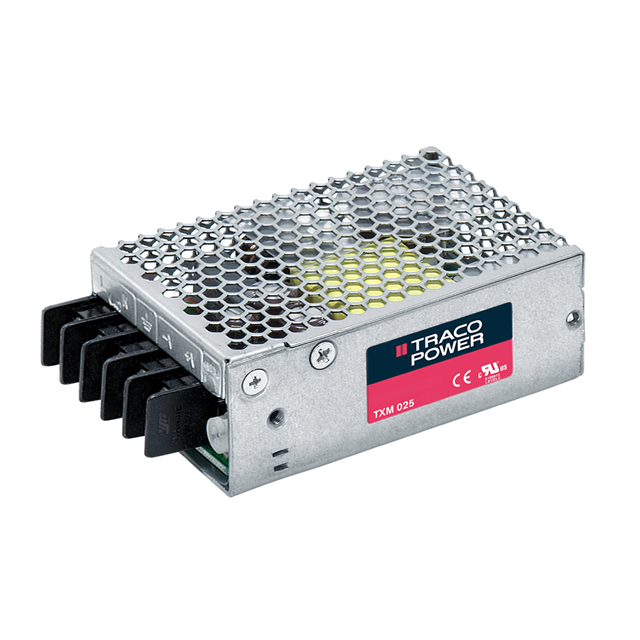

Enclosed AC DC Converters 1 Output 3.3V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical documentation and resources
Parameters and characteristics for this part
| Specification | TXM 025-103 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 5 A |
| Efficiency | 71 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 17 W |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [y] | 2.01 in |
| Size / Dimension [z] | 1.13 in |
| Size / Dimension [z] | 28.8 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
AC/DC CONVERTER 3.3V 17W
| Part | Voltage - Isolation | Features | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Power (Watts) | Approval Agency | Number of Outputs | Efficiency | Minimum Load Required | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Voltage - Output 1 | Applications | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power TXM 025-103 | 3000 V | Adjustable Output, Universal Input | 90 VAC, 127 VDC | 264 VAC, 370 VDC | 51 mm | 79 mm | 1.13 in | 28.8 mm | 2.01 in | 3.11 in | Chassis Mount | 17 W | CE, cURus | 1 | 71 % | -25 °C | 70 °C | 5 A | 3.3 V | ITE (Commercial) | Enclosed |
