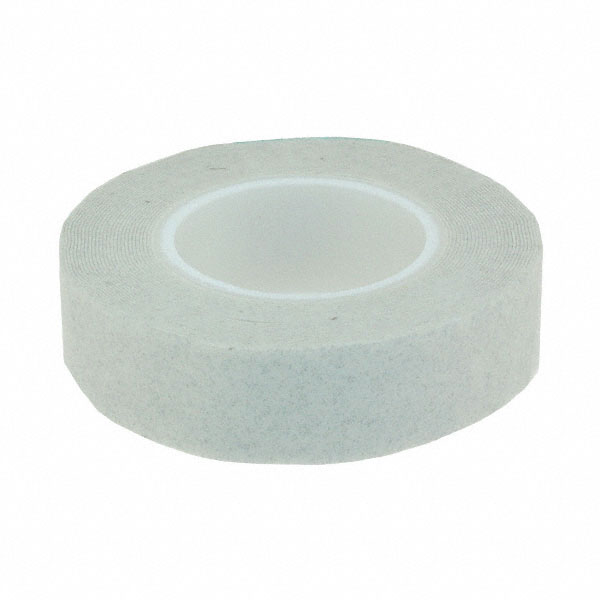

5590H-05-19.05-5

Active

3M (TC)

THERM PAD 5M X 19.05MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5590H-05-19.05-5

Active

3M (TC)

THERM PAD 5M X 19.05MM GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5590H-05-19.05-5

Adhesive	Tacky - Both Sides
Color	Gray
Material	Acrylic Elastomer
Outline	19.05 mm, 5 m
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	68 °F
Thermal Resistivity	0.46 °C/W
Thickness	0.0197 in
Thickness	0.5 mm
Type	Interface Pad, Roll

19.05MM Series

Part	Thermal Resistivity	Color	Shape	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Thickness	Thickness	Type	Adhesive	Outline [x]	Outline [y]	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thermal Conductivity	Backing, Carrier	Outline
3M (TC) 5590H05-SQ-19.05(25)	0.46 °C/W	Gray	Square	24 Months	77 °F	68 °F	Acrylic Elastomer	0.0197 in	0.5 mm	Interface Pad Sheet	Tacky - Both Sides	19.05 mm	19.05 mm	Date of Manufacture
3M (TC) 19.05MMOD-8MMID-25-8810		White	Round	24 Months			Acrylic			Transfer Tape	Adhesive - Both Sides	19.05 mm	8 mm	Date of Manufacture	72 °F	22 °C	0.6 W/m-K	Polyester
3M (TC) 5590H-05-19.05-5	0.46 °C/W	Gray	Rectangular	24 Months	77 °F	68 °F	Acrylic Elastomer	0.0197 in	0.5 mm	Interface Pad Roll	Tacky - Both Sides			Date of Manufacture					5 m 19.05 mm
3M (TC) 8810-19.05-13.21(25)		White	Rectangular	24 Months			Acrylic			Transfer Tape	Adhesive - Both Sides	19.05 mm	13.21 mm	Date of Manufacture	72 °F	22 °C	0.6 W/m-K	Polyester
3M (TC) 19.05MM-14.47MM-25-8810		White	Rectangular	24 Months			Acrylic			Transfer Tape	Adhesive - Both Sides	19.05 mm	14.47 mm	Date of Manufacture	72 °F	22 °C	0.6 W/m-K	Polyester
3M (TC) 8815-19.05-19.05(25)		White	Square	24 Months			Acrylic	0.0148 in	0.375 mm	Transfer Tape	Adhesive - Both Sides	19.05 mm	19.05 mm	Date of Manufacture	72 °F	22 °C	0.6 W/m-K	Polyester
3M (TC) 19.05MM-13.21MM-25-5590H-05	0.46 °C/W	Gray	Rectangular	24 Months	77 °F	68 °F	Acrylic Elastomer	0.0197 in	0.5 mm	Interface Pad Sheet	Tacky - Both Sides	19.05 mm	13.21 mm	Date of Manufacture
3M (TC) 19.05MM-28.45MM-25-5590H-05	0.46 °C/W	Gray	Rectangular	24 Months	77 °F	68 °F	Acrylic Elastomer	0.0197 in	0.5 mm	Interface Pad Sheet	Tacky - Both Sides	28.45 mm	19.05 mm	Date of Manufacture
3M (TC) 19.05MM-12.7MM-25-8815		White	Rectangular	24 Months			Acrylic	0.0148 in	0.375 mm	Transfer Tape	Adhesive - Both Sides	19.05 mm	12.7 mm	Date of Manufacture	72 °F	22 °C	0.6 W/m-K	Polyester
3M (TC) 19.05MM-12.7MM-25-8810		White	Rectangular	24 Months			Acrylic			Transfer Tape	Adhesive - Both Sides	19.05 mm	12.7 mm	Date of Manufacture	72 °F	22 °C	0.6 W/m-K	Polyester

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 81.07
		10	$ 76.01
		25	$ 70.94
		50	$ 68.41
		100	$ 65.87

Description

General part information

19.05MM Series

Thermal Pad Gray 5.00m x 19.05mm Rectangular Tacky - Both Sides
