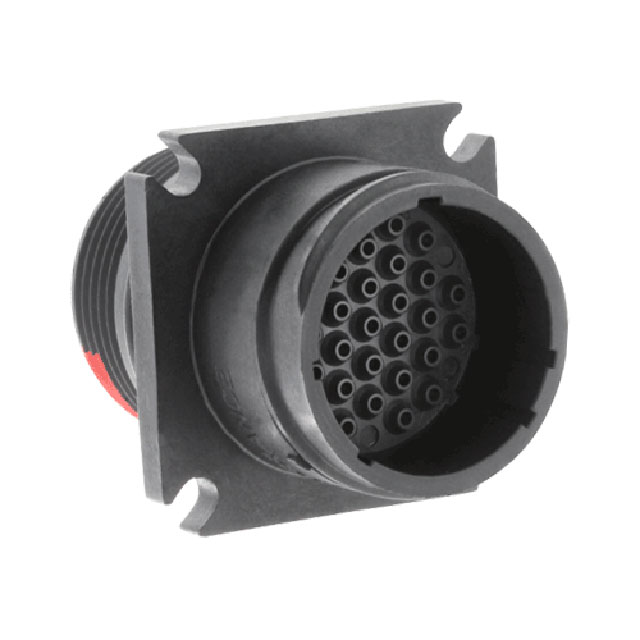

Specification	CL1M3200

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Solder Cup, Crimp
Fastening Type	Twist Latch
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	31
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Material	Halogen Free, Thermoplastic
Shell Size - Insert Length	3 mm
Shell Size - Insert Width	2 mm
Shielding	Unshielded
Type	For Male Pins

CL1M Series

Part	Fastening Type	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Contact Shape	Material Flammability Rating	Connector Type	Type	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Type	Mounting Type	Note	Insert Material	Number of Positions	Shielding	Housing Color	Contact Size	Ingress Protection	Shell Size - Insert Length	Shell Size - Insert Width
Amphenol Aerospace Operations CL1M1101	Twist Latch	Keyed	Dust Tight Waterproof	IP67	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	1	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	4	Unshielded	Black	16 S
Amphenol Aerospace Operations CL1M2200	Twist Latch	Keyed			Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	2	2	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	14	Unshielded	Black	20	IP40
Amphenol Aerospace Operations CL1M4101	Twist Latch	Keyed	Dust Tight Waterproof	IP67	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	26	Unshielded	Black	16 S		4 mm	1 mm
Amphenol Aerospace Operations CL1M1100	Twist Latch	Keyed			Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	1	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	4	Unshielded	Black	16 S	IP40
Amphenol Aerospace Operations CL1M2101	Twist Latch	Keyed	Dust Tight Waterproof	IP67	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	16 S		2 mm	1 mm
Amphenol Aerospace Operations CL1M1202	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	2	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	20
Amphenol Aerospace Operations CL1M4202	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	40	Unshielded	Black	16 S		4 mm	2 mm
Amphenol Aerospace Operations CL1M1200	Twist Latch	Keyed			Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	2	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	20	IP40
Amphenol Aerospace Operations CL1M4102	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	26	Unshielded	Black	16 S		4 mm	1 mm
Amphenol Aerospace Operations CL1M2102	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	16 S		2 mm	1 mm
