CL1M Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG MALE 4POS PNL MNT

Part	Fastening Type	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Contact Shape	Material Flammability Rating	Connector Type	Type	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Type	Mounting Type	Note	Insert Material	Number of Positions	Shielding	Housing Color	Contact Size	Ingress Protection	Shell Size - Insert Length	Shell Size - Insert Width
Amphenol Aerospace Operations CL1M1101	Twist Latch	Keyed	Dust Tight Waterproof	IP67	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	1	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	4	Unshielded	Black	16 S
Amphenol Aerospace Operations CL1M2200	Twist Latch	Keyed			Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	2	2	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	14	Unshielded	Black	20	IP40

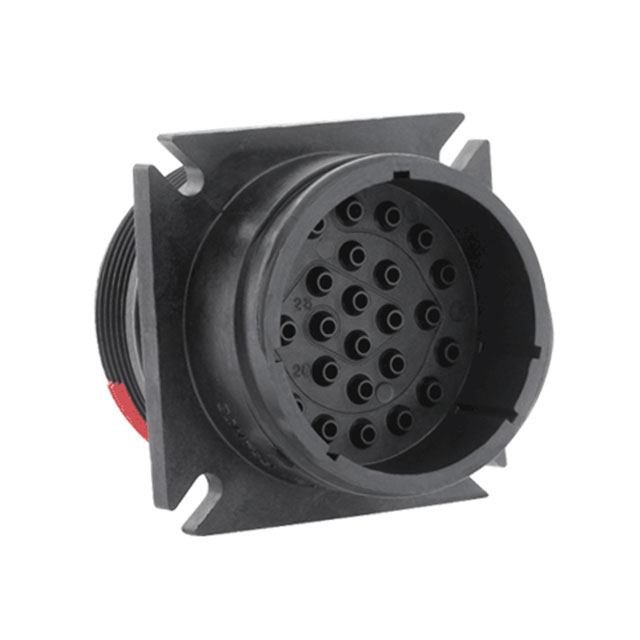

Amphenol Aerospace Operations CL1M4101	Twist Latch	Keyed	Dust Tight Waterproof	IP67	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	26	Unshielded	Black	16 S		4 mm	1 mm
Amphenol Aerospace Operations CL1M1100	Twist Latch	Keyed			Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	1	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	4	Unshielded	Black	16 S	IP40
Amphenol Aerospace Operations CL1M2101	Twist Latch	Keyed	Dust Tight Waterproof	IP67	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	16 S		2 mm	1 mm
Amphenol Aerospace Operations CL1M1202	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	2	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	20
Amphenol Aerospace Operations CL1M4202	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	40	Unshielded	Black	16 S		4 mm	2 mm
Amphenol Aerospace Operations CL1M1200	Twist Latch	Keyed			Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C	2	1	Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	20	IP40
Amphenol Aerospace Operations CL1M4102	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	26	Unshielded	Black	16 S		4 mm	1 mm
Amphenol Aerospace Operations CL1M2102	Twist Latch	Keyed	Dust Tight Waterproof	IP68	Halogen Free Thermoplastic	Circular	UL94 V-0	Receptacle Housing	For Male Pins	Flange	125 °C	-40 °C			Crimp Solder Cup	Panel Mount	Contacts Not Included	Thermoplastic	9	Unshielded	Black	16 S		2 mm	1 mm
