Specification	ZH2-13.0-0-FSP-SM

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered	0.256 in
Inner Diameter - Supplied	0.531 in
Length	1312.3 ft, 3.28 ft
Material	Polyolefin (PO), Halogen Free
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-30 °C
Recovered Wall Thickness	0.026 in
Shrink Temperature	70 °C
Shrinkage Ratio	2
Type	Flexible, Tubing

ZH2 Series

Part	Length	Material	Features	Inner Diameter - Recovered	Color	Shrinkage Ratio	Shrink Temperature	Operating Temperature (Min)	Operating Temperature (Max)	Type	Recovered Wall Thickness	Inner Diameter - Supplied
TE Connectivity AMP Connectors ZH2-3.0-0-SP-SM	3.28 ft 4593.4 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.06 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.017 in	0.142 in
TE Connectivity AMP Connectors ZH2-11.0-0-FSP-SM	3.28 ft 1640.4 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.217 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.022 in	0.45 in
TE Connectivity AMP Connectors ZH2-8.0-0-FSP-SM	3.28 ft 1640.4 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.157 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.022 in	0.339 in
TE Connectivity AMP Connectors ZH2-18.0-0-FSP-SM	3.28 ft 164 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.354 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.03 in	0.748 in

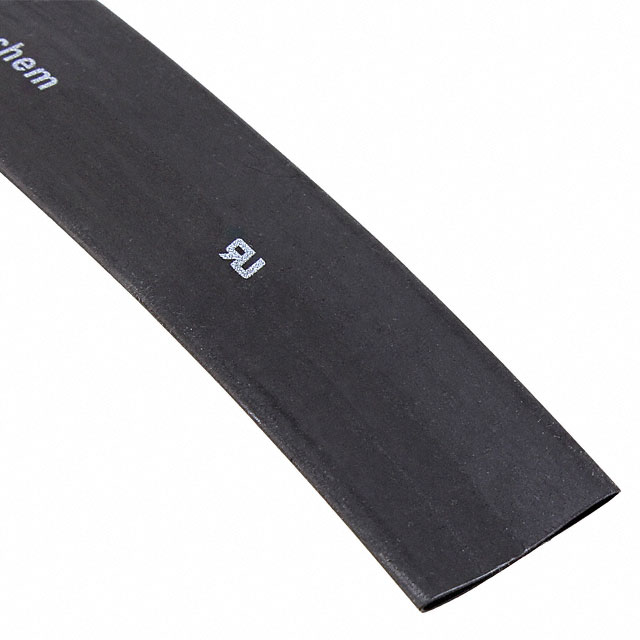

TE Connectivity AMP Connectors ZH2-15.0-0-FSP-SM	3.28 ft 1312.3 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.295 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.027 in	0.618 in
TE Connectivity AMP Connectors ZH2-1.0-0-SP-SM	3.28 ft 6562 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.02 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.013 in	0.059 in
TE Connectivity AMP Connectors ZH2-3.5-0-SP-SM	3.28 ft 3937.2 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.069 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.017 in	0.161 in
TE Connectivity AMP Connectors ZH2-5.0-0-SP-SM	0.042 ft 0.062 ft 0.083 ft 0.333 ft 0.5 ft 2.004 in 328.1 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.098 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.022 in	0.221 in

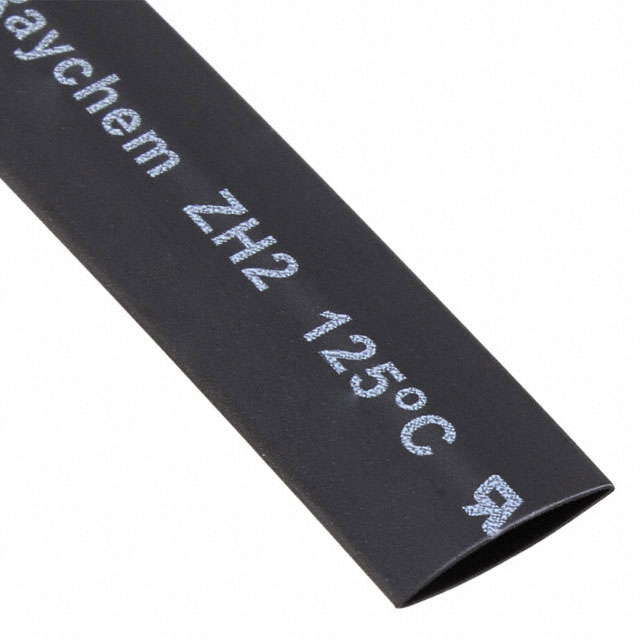

TE Connectivity AMP Connectors ZH2-9.0-0-FSP-SM	3.28 ft 1640.4 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.178 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.022 in	0.378 in
TE Connectivity AMP Connectors ZH2-13.0-0-FSP-SM	3.28 ft 1312.3 ft	Halogen Free Polyolefin (PO)	Flame Retardant	0.256 in	Black	2	70 °C	-30 °C	125 °C	Flexible Tubing	0.026 in	0.531 in
