TCA-P-10A

Active

OptiFuse

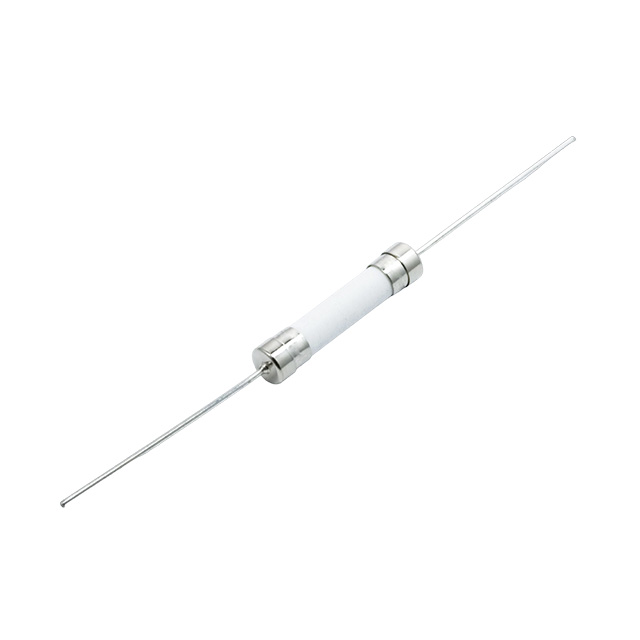

FUSE CERAMIC 10A 250VAC 3AB 3AG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TCA-P-10A

Active

OptiFuse

FUSE CERAMIC 10A 250VAC 3AB 3AG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCA-P-10A

Approval Agency	UL 248, cULus
Breaking Capacity @ Rated Voltage	200 A
Current Rating (Amps)	10 A
Fuse Type	Cartridge, Ceramic
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Slow Blow
Size / Dimension [diameter]	6.85 mm
Size / Dimension [diameter]	0.27 in
Size / Dimension [x]	32.4 mm
Size / Dimension [x]	1.276 in
Voltage Rating - AC	250 V

TCA Series

Part	Response Time	Package / Case	Package / Case [y]	Package / Case [x]	Breaking Capacity @ Rated Voltage	Fuse Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC	Current Rating (Amps)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]
OptiFuse TCA-3A	Slow Blow	3AB 3AG	1-1/4	1/4	100 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	3 A	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-P-10A	Slow Blow	3AB 3AG	1-1/4	1/4	200 A	Cartridge Ceramic			6.85 mm	0.27 in	250 V	10 A	cULus UL 248	-55 °C	125 °C	Through Hole	32.4 mm	1.276 in
OptiFuse TCA-1.5A	Slow Blow	3AB 3AG	1-1/4	1/4	100 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	1.5 A	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-800MA	Slow Blow	3AB 3AG	1-1/4	1/4	100 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	800 mA	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-1A	Slow Blow	3AB 3AG	1-1/4	1/4	100 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	1 A	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-100MA	Slow Blow	3AB 3AG	1-1/4	1/4	35 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	100 mA	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-6A	Slow Blow	3AB 3AG	1-1/4	1/4	200 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	6 A	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-15A	Slow Blow	3AB 3AG	1-1/4	1/4	750 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	15 A	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-12A	Slow Blow	3AB 3AG	1-1/4	1/4	750 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	12 A	cULus UL 248	-55 °C	125 °C	Requires Holder
OptiFuse TCA-25A	Slow Blow	3AB 3AG	1-1/4	1/4	100 A	Cartridge Ceramic	1.252 in	31.8 mm	6.35 mm	0.25 in	250 V	25 A	cURus UL 248	-55 °C	125 °C	Requires Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.02

Description

General part information

TCA Series

10 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
