1827685-3
ActiveTE Connectivity AMP Connectors

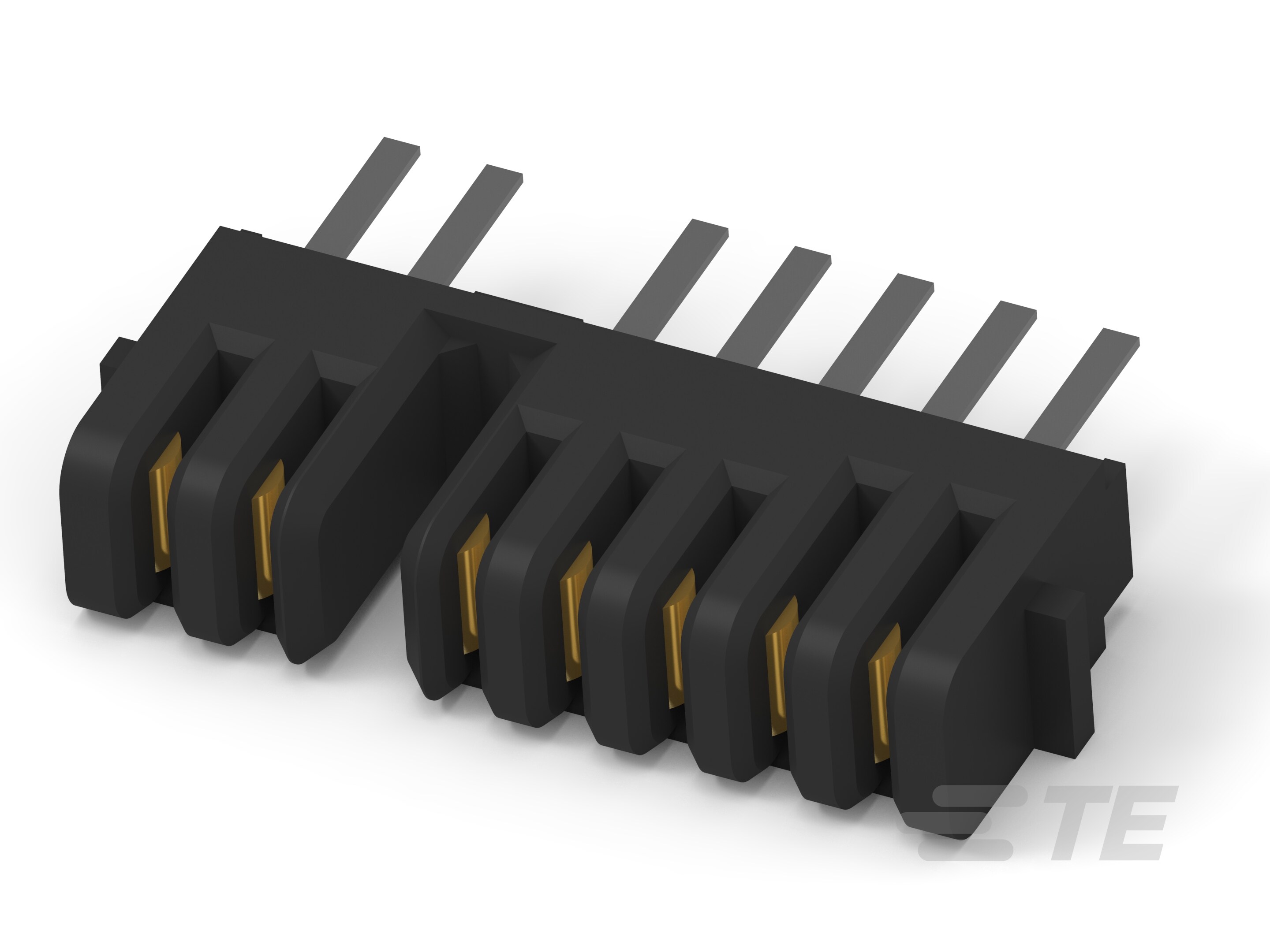

2MM PITCH BATTERY REC. ASSY. 7POS. RVS.
1827685-3
ActiveTE Connectivity AMP Connectors
2MM PITCH BATTERY REC. ASSY. 7POS. RVS.
Description
General part information
1827685 Series
Board-to-Board, 7 Position, 2 mm [.079 in] Centerline, Receptacle, 30 VDC, Right Angle, Printed Circuit Board, Power & Signal, DC Jack Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1827685-3 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Blade |
| Features | Stackable |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch | 0.079 in |
| Stacking Direction | Side to Side |
