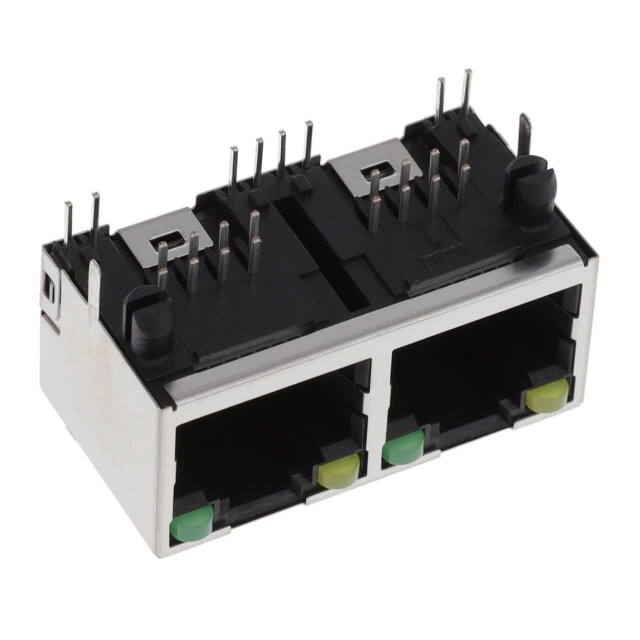

RJE392886410

Active

Amphenol ICC (Commercial Products)

RA, 8P8C, TWO PORT, WITH SHIELD,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

RA, 8P8C, TWO PORT, WITH SHIELD,

Technical Specifications

Parameters and characteristics for this part

Specification	RJE392886410

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Up
Termination	Solder

Part	Connector Type	Number of Ports	Tab Direction	Contact Material	Orientation	LED Color	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish	Termination	Number of Positions/Contacts	Shielding
Amphenol ICC (Commercial Products) RJE392886410	Jack	2	Up	Phosphor Bronze	90 °	Yellow - Green	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Gold	Solder	8p8c (RJ45 Ethernet)	Shielded
Amphenol ICC (Commercial Products) RJE392881410	Jack	2	Up	Phosphor Bronze	90 °	Yellow - Green	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Gold	Solder	8p8c (RJ45 Ethernet)	Shielded EMI Finger
Amphenol ICC (Commercial Products) RJE392880400	Jack	2	Up	Phosphor Bronze	90 °	Does Not Contain LED	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Gold	Solder	8p8c (RJ45 Ethernet)	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
