6-87523-8

Active

TE Connectivity AMP Connectors

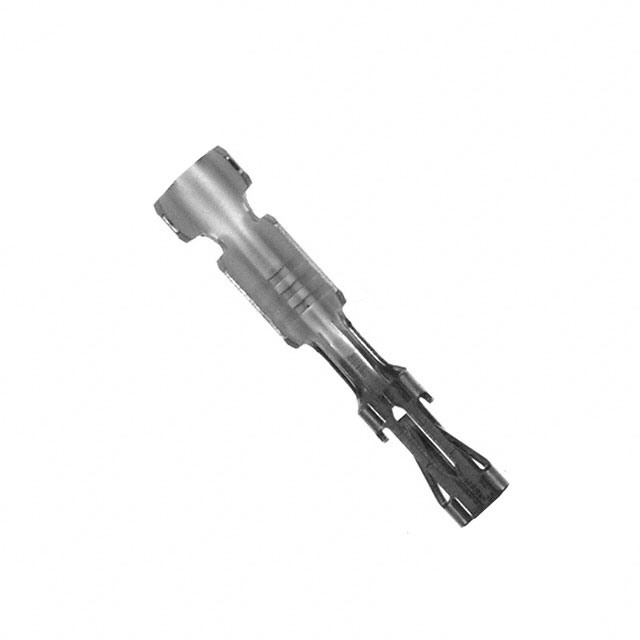

CONN SOCKET 20-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 20-24AWG CRIMP GOLD

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 1-87523-9	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 2-87523-1	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 2-87523-3	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 87523-2	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 87523-4	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 1-87523-5	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 87523-7	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 87523-3	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 6-87523-8	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 6-87523-9	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 20-24 AWG Crimp
