GBPAX-2
ActiveCurtis Industries

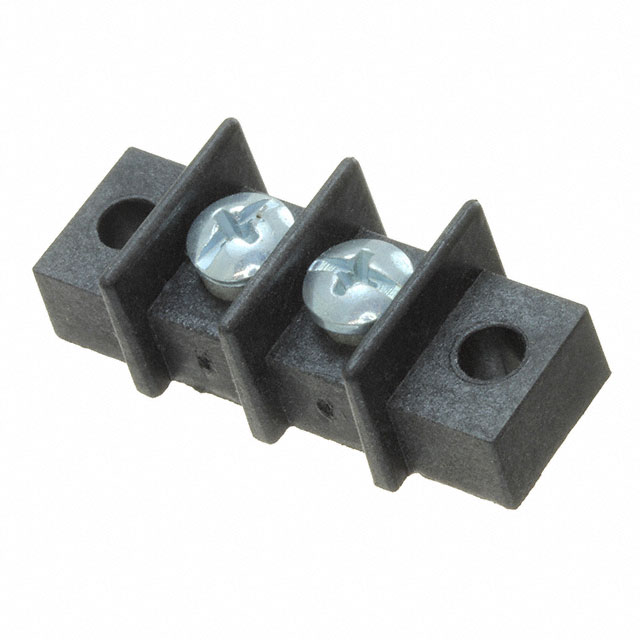

CONN BARRIER STRIP 2CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
GBPAX-2
ActiveCurtis Industries
CONN BARRIER STRIP 2CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GBPAX-2 | GBPAX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 2 | 2 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 2 | 2 - 26 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GBPAX Series
CONN BARRIER STRP 24CIRC 0.438"
| Part | Top Termination | Terminal Block Type | Pitch [x] | Pitch [x] | Material Flammability Rating | Number of Circuits | Terminal Screw Material | Mounting Type | Features | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Operating Temperature | Barrier Type | Material - Insulation | Color | Current Rating (Amps) | Bottom Termination | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GBPAX-24 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 24 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | |
Curtis Industries GBPAX-19 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 19 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 19 |
Curtis Industries GBPAX-2 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 2 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 2 |
Curtis Industries GBPAX-3 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 3 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 3 |
Curtis Industries GBPAX-13 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 13 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 13 |
Curtis Industries GBPAX-25 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 25 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 25 |
Curtis Industries GBPAX-4 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 4 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 4 |
Curtis Industries GBPAX-9 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 9 | |
Curtis Industries GBPAX-26 | Screws | Barrier Block | 11.12 mm | 0.438 in | UL94 V-0 | 26 | Steel | Chassis, Panel, Through Hole | Flange | 12 AWG | 22 AWG | 1 | 110 °C | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | Black | 20 A | PC Pin | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.54 | |
| 10 | $ 4.22 | |||
| 25 | $ 3.95 | |||
| 50 | $ 3.51 | |||
| 100 | $ 3.44 | |||
| 250 | $ 3.17 | |||
| 500 | $ 2.86 | |||
| 1000 | $ 2.54 | |||
Description
General part information
GBPAX Series
2 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
