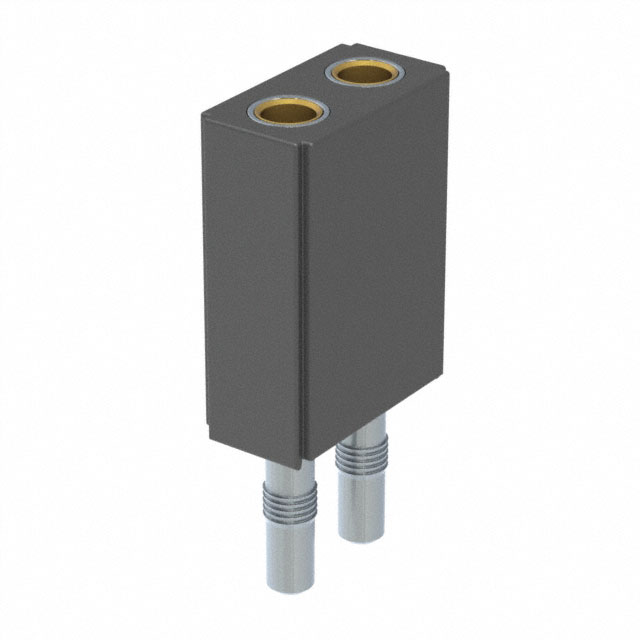

803-93-002-62-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

803-93-002-62-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-93-002-62-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.143 in
Contact Length - Post [x]	3.63 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder, Press-Fit

803-93 Series

...

Part	Number of Positions Loaded	Insulation Material	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 803-93-044-30-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	44	30 Áin	0.76 Ám	Surface Mount	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead	0.338 in	8.59 mm	Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 803-93-014-10-002000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	14	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold	3.18 mm	0.125 in	0.165 in	4.2 mm
Mill-Max Manufacturing Corp. 803-93-008-10-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	8	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold			0.276 in	7 mm	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-93-024-61-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	24	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold			0.276 in	7 mm	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 803-93-038-30-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	38	30 Áin	0.76 Ám	Surface Mount	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead	0.338 in	8.59 mm	Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 803-93-044-20-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	44	30 Áin	0.76 Ám	Through Hole Right Angle	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold		0.126 in				3.2 mm
Mill-Max Manufacturing Corp. 803-93-076-10-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	76	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold			0.276 in	7 mm	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-93-026-10-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	26	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold			0.276 in	7 mm	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-93-002-62-001000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	2	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull			-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold	3.63 mm	0.143 in	0.276 in	7 mm
Mill-Max Manufacturing Corp. 803-93-060-10-002000	All	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	60	30 Áin	0.76 Ám	Through Hole	4.5 A	Female Socket	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	Circular	2	Black	200 µin	5.08 µm	UL94 V-0	Tin-Lead			Receptacle	Beryllium Copper	2.54 mm	0.1 in	Gold	3.18 mm	0.125 in	0.165 in	4.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.08

Description

General part information

803-93 Series

2 Position Receptacle Connector Through Hole Gold

Documents

Technical documentation and resources

No documents available
