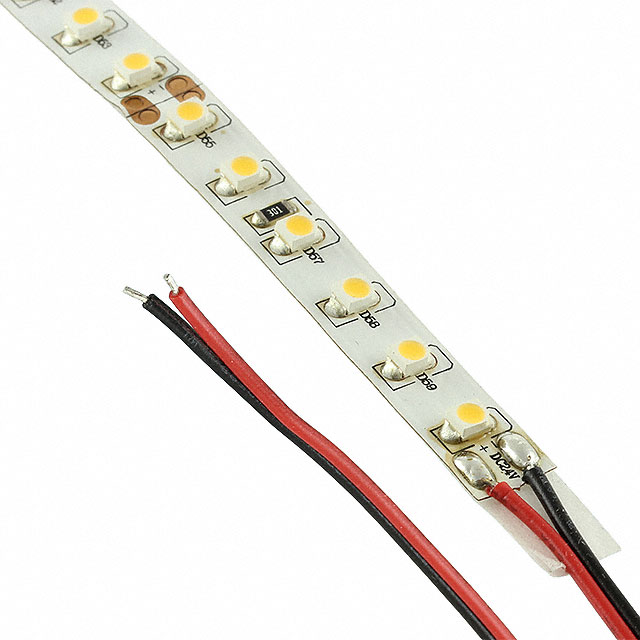

ZFS-84000-WW

Active

JKL Components Corp.

LED ENG WM WHT LNR STRP 3050K 4M

Search across all available documentation for this part.

Active

JKL Components Corp.

LED ENG WM WHT LNR STRP 3050K 4M

Technical Specifications

Parameters and characteristics for this part

Specification	ZFS-84000-WW

CCT (K)	3050 K
Color	White, Warm
Configuration	Linear Light Strip, Flexible
Current - Test	1.44 A
Height [z]	2.43 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	56 lm/W
Luminous Flux @ Current/Temperature	1940 lm
Size / Dimension [x]	4000 mm
Size / Dimension [y]	8 mm
Type	LED Engine
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

Part	Current - Test	Lumens/Watt @ Current - Test	Height [z]	Color	Type	Lens Type	Configuration	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Luminous Flux @ Current/Temperature	CCT (K)
JKL Components Corp. ZFS-84000-WW	1.44 A	56 lm/W	2.43 mm	Warm White	LED Engine	Flat	Flexible Linear Light Strip	8 mm	4000 mm	24 V	120 °	1940 lm	3050 K
JKL Components Corp. ZFS-84000-CW	1.44 A	64 lm/W	2.43 mm	Cool White	LED Engine	Flat	Flexible Linear Light Strip	8 mm	4000 mm	24 V	120 °	2200 lm	6000 K
JKL Components Corp. ZFS-84000-NW	1.44 A	60 lm/W	2.43 mm	Neutral White	LED Engine	Flat	Flexible Linear Light Strip	8 mm	4000 mm	24 V	120 °	2070 lm	4100 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.18

General part information

LED Lighting COBs Engines Modules LED Engine - White, Warm Linear Light Strip, Flexible

Technical documentation and resources
