R533W512050P0K

Active

KEMET

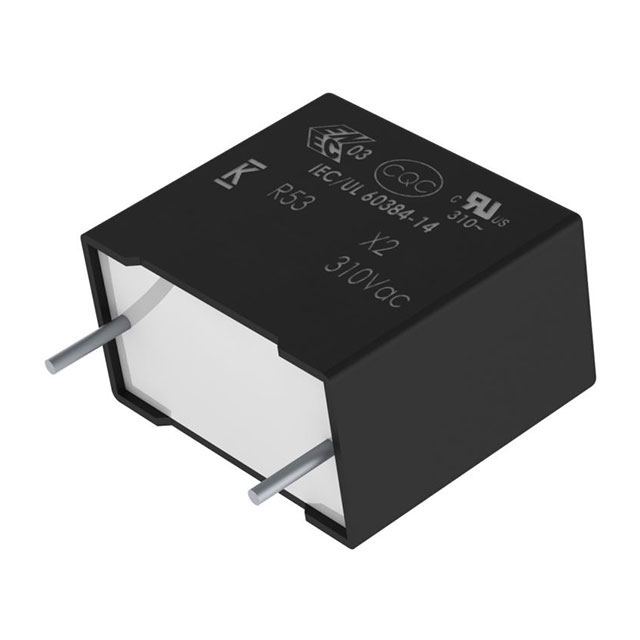

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 12 ΜF, ± 10%, X2, THROUGH HOLE

Search across all available documentation for this part.

Active

KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 12 ΜF, ± 10%, X2, THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	R533W512050P0K

Applications	EMI, RFI Suppression, Automotive
Capacitance	12 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	44.3 mm
Height - Seated (Max) [Max] [z]	1.744 in
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension [x]	1.654 in
Size / Dimension [x]	42 mm
Size / Dimension [y]	0.945 in
Size / Dimension [y]	24 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Capacitance	Ratings	Applications	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R533W522050P0K	310 V	42 mm	1.181 in	1.654 in	30 mm	10 %	22 µF	AEC-Q200 X2	Automotive EMI RFI Suppression	Radial	37.5 mm	1.476 in	45.3 mm	1.783 in	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	PC Pins
KEMET R533W510050P0K	310 V	42 mm	0.787 in	1.654 in	20 mm	10 %	10 µF	AEC-Q200 X2	Automotive EMI RFI Suppression	Radial	37.5 mm	1.476 in			-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	PC Pins	40.3 mm	1.587 in
KEMET R533W515050P0K	310 V	42 mm	0.945 in	1.654 in	24 mm	10 %	15 µF	AEC-Q200 X2	Automotive EMI RFI Suppression	Radial	37.5 mm	1.476 in	44.3 mm	1.744 in	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	PC Pins
KEMET R533W512050P0K	310 V	42 mm	0.945 in	1.654 in	24 mm	10 %	12 µF	AEC-Q200 X2	Automotive EMI RFI Suppression	Radial	37.5 mm	1.476 in	44.3 mm	1.744 in	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
