R112670000

Active

Radiall USA, Inc.

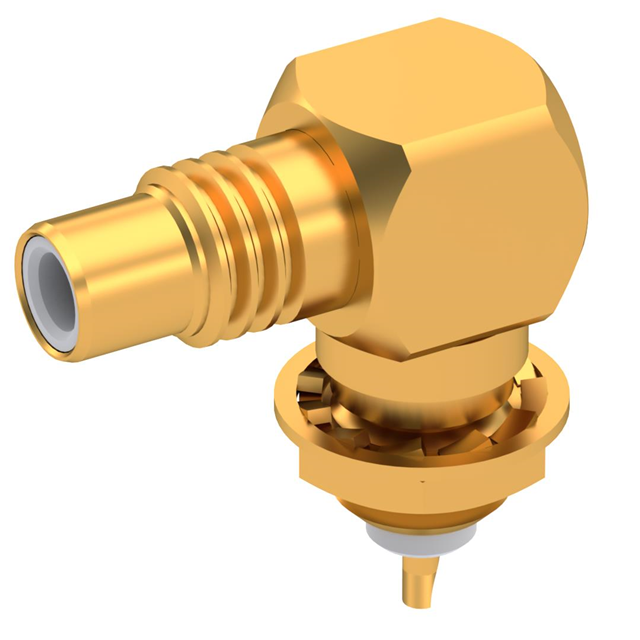

SMC / RIGHT ANGLE BULKHEAD JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / RIGHT ANGLE BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R112670000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Body Material	Center Contact Plating	Contact Termination	Number of Ports	Connector Style	Mounting Feature	Shield Termination	Body Finish	Dielectric Material	Voltage Rating	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Color	Frequency - Max [Max]	Impedance	Mating Cycles	Connector Type
Radiall USA, Inc. R112670000	Brass	Gold	Solder Cup	1	SMC	Bulkhead - Rear Side Nut	Solder	Gold	Polytetrafluoroethylene (PTFE)	335 V	Brass	-65 ░C	165 °C	Panel Mount Right Angle	Gold	10 GHz	50 Ohms	500	Jack Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 58.71

General part information

SMC Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Solder Cup
