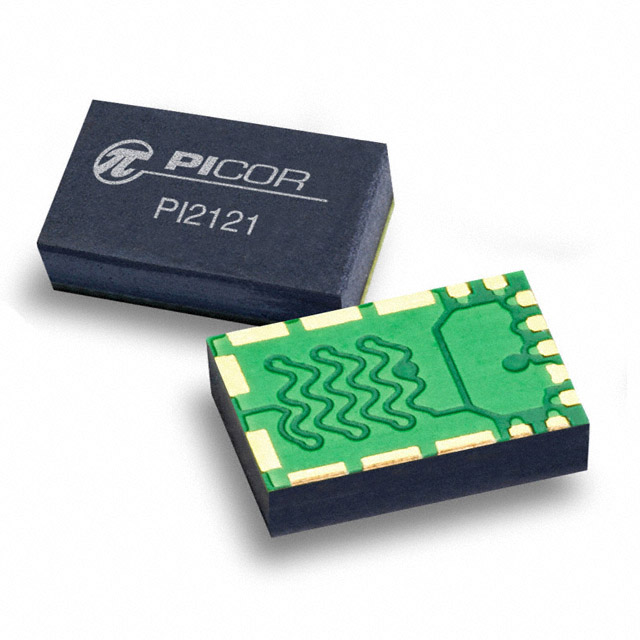

PI2121-00-LGIZ

Obsolete

Vicor Corporation

IC OR CTRLR N+1 17LGA

Search across all available documentation for this part.

Obsolete

Vicor Corporation

IC OR CTRLR N+1 17LGA

Technical Specifications

Parameters and characteristics for this part

Specification	PI2121-00-LGIZ

Applications	Telecom Infrastructure, Redundant Power Supplies
Current - Output (Max) [Max]	24 A
Current - Supply	3.7 mA
FET Type	N-Channel
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	17-LGA
Ratio - Input:Output [custom]	N:1
Supplier Device Package	17-LGA (5x7)
Type	N+1 ORing Controller
Voltage - Supply [Max]	13.2 V
Voltage - Supply [Min]	4.5 V

Part	Current - Supply	Ratio - Input:Output [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Supplier Device Package	Mounting Type	Current - Output (Max) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	FET Type	Internal Switch(s)	Type
Vicor Corporation PI2121-00-LGIZ	3.7 mA	N:1	125 °C	-40 °C	Redundant Power Supplies Telecom Infrastructure	17-LGA (5x7)	Surface Mount	24 A	4.5 V	13.2 V	17-LGA	N-Channel		N+1 ORing Controller

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

OR Controller N+1 ORing Controller N-Channel N:1 17-LGA (5x7)
