14-473.036
ActiveEAO

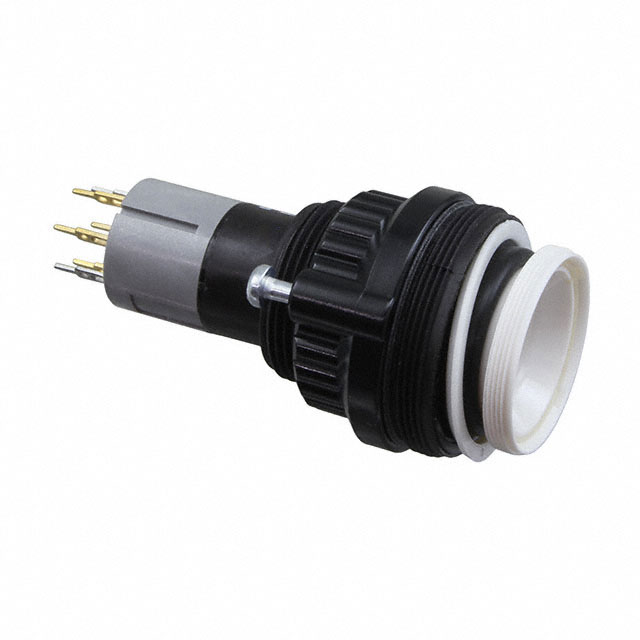

PUSHBUTTON SWITCH, 14 SERIES, 22.3 MM, SPST-NO, SPST-NC, MAINTAINED, ROUND
Deep-Dive with AI
Search across all available documentation for this part.
14-473.036
ActiveEAO
PUSHBUTTON SWITCH, 14 SERIES, 22.3 MM, SPST-NO, SPST-NC, MAINTAINED, ROUND
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 14-473.036 | 14-473 Series |
|---|---|---|
| Actuator Marking | - | No Marking |
| Actuator Type | - | Round, Button (Not Included) |
| Circuit | - | DPST-NO/NC |
| Current Rating (Amps) | - | 100 mA |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Mechanical Life | - | 1000000 Cycles |
| Mounting Type | - | Panel Mount, Front |
| null | - | |
| Operating Temperature | - | 55 °C |
| Operating Temperature | - | -25 °C |
| Panel Cutout Dimensions | - | 22.3 mm |
| Switch Function | - | On-Off, Off-On |
| Termination Style | - | PC Pin, Solder Lug |
| Type | - | Standard |
| Voltage Rating - AC | - | 42 V |
| Voltage Rating - DC | - | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
14-473 Series
PUSHBUTTON SWITCH, 14 SERIES, 22.3 MM, SPST-NO, SPST-NC, MAINTAINED, ROUND
| Part | Actuator Type | Termination Style | Switch Function | Circuit | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Mechanical Life | Ingress Protection | Mounting Type | Actuator Marking | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 14-473.036 | Round, Button (Not Included) | PC Pin, Solder Lug | Off-On, On-Off | DPST-NO/NC | 100 mA | 42 V | 55 °C | -25 °C | 42 V | 22.3 mm | 1000000 Cycles | IP67 - Dust Tight, Waterproof | Panel Mount, Front | No Marking | Standard |
EAO 14-473.036 |
Description
General part information
14-473 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
