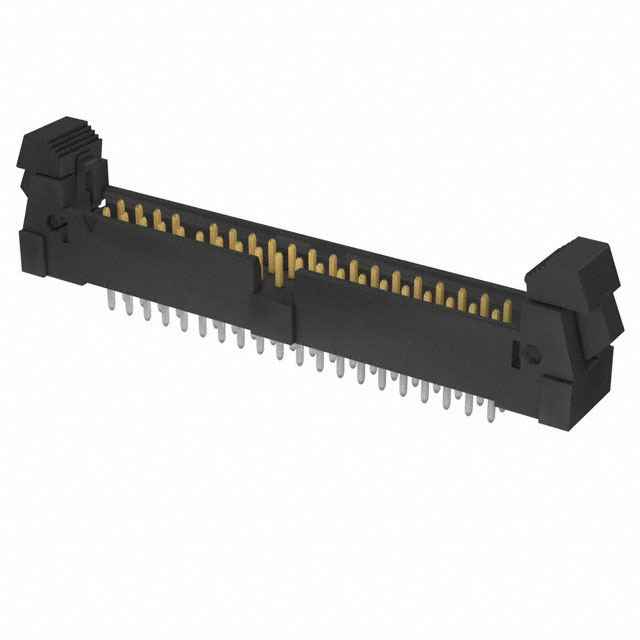

EHT-120-01-S-D-10

Active

Samtec Inc.

CONN HEADER VERT 40POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-120-01-S-D-10

Active

Samtec Inc.

CONN HEADER VERT 40POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-120-01-S-D-10

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	39
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-120 Series

Part	Insulation Material	Contact Shape	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Number of Positions	Insulation Color	Shrouding	Contact Finish - Mating	Fastening Type	Style	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Rows	Number of Positions Loaded	Mounting Type	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded
Samtec Inc. EHT-120-01-S-D-SM-34-P-TR	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot Pick and Place	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2	39	Surface Mount	Male Pin	0.079 in	2 mm	30 Áin	0.76 Ám	Header	0.079 in	2 mm
Samtec Inc. EHT-120-01-S-D-10	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2	39	Through Hole	Male Pin	0.079 in	2 mm	30 Áin	0.76 Ám	Header	0.079 in	2 mm	0.114 in	2.9 mm
Samtec Inc. EHT-120-01-S-D-SM-30	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2	39	Surface Mount	Male Pin	0.079 in	2 mm	30 Áin	0.76 Ám	Header	0.079 in	2 mm
Samtec Inc. EHT-120-01-L-D-SM-LC	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Board Lock Keying Slot	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2		Surface Mount	Male Pin	0.079 in	2 mm	15 µin	0.38 µm	Header	0.079 in	2 mm			All
Samtec Inc. EHT-120-01-S-D-SM-01	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2	39	Surface Mount	Male Pin	0.079 in	2 mm	30 Áin	0.76 Ám	Header	0.079 in	2 mm
Samtec Inc. EHT-120-01-S-D-SM-P	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot Pick and Place	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2		Surface Mount	Male Pin	0.079 in	2 mm	30 Áin	0.76 Ám	Header	0.079 in	2 mm			All
Samtec Inc. EHT-120-01-F-D-SM-P	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot Pick and Place	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2		Surface Mount	Male Pin	0.079 in	2 mm	3 µin	0.076 µm	Header	0.079 in	2 mm			All
Samtec Inc. EHT-120-01-L-D-SM-LC-K-TR	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Board Lock Keying Slot Pick and Place	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2		Surface Mount	Male Pin	0.079 in	2 mm	15 µin	0.38 µm	Header	0.079 in	2 mm			All
Samtec Inc. EHT-120-01-F-D-SM-K-TR	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Keying Slot Pick and Place	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2		Surface Mount	Male Pin	0.079 in	2 mm	3 µin	0.076 µm	Header	0.079 in	2 mm			All
Samtec Inc. EHT-120-01-F-D-SM-LC-P-TR	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	Phosphor Bronze	0.37 in	9.4 mm	40	Black	Shrouded - 4 Wall	Gold	Latch Lock/Eject Hooks	Board to Cable/Wire	Board Lock Keying Slot Pick and Place	3 A	-55 °C	125 °C	Solder	3.05 mm	0.12 in	Tin	2		Surface Mount	Male Pin	0.079 in	2 mm	3 µin	0.076 µm	Header	0.079 in	2 mm			All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 20.35

Description

General part information

EHT-120 Series

Connector Header Through Hole 40 position 0.079" (2.00mm)
