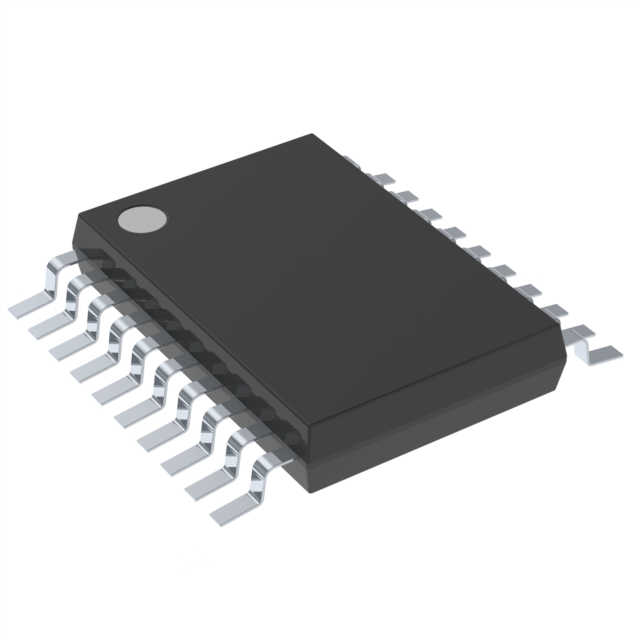

74ACT244TTR
ActiveSTMicroelectronics
IC BUFF NON-INVERT 5.5V 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74ACT244TTR
ActiveSTMicroelectronics
IC BUFF NON-INVERT 5.5V 20TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74ACT244TTR |
|---|---|
| Current - Output High, Low | 24 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 3-State |
| Package / Case | 20-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 20-TSSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
74ACT244 Series
IC BUFF NON-INVERT 5.5V 20TSSOP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Logic Type | Number of Bits per Element | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Current - Output High, Low | Output Type | Package / Case [y] | Package / Case | Package / Case [x] | Number of Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 74ACT244TTR | 125 °C | -55 °C | Buffer, Non-Inverting | 4 | 20-TSSOP | 4.5 V | 5.5 V | Surface Mount | 24 mA | 3-State | 4.4 mm | 20-TSSOP | 0.173 in | 2 |
Description
General part information
74ACT244 Series
Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP
