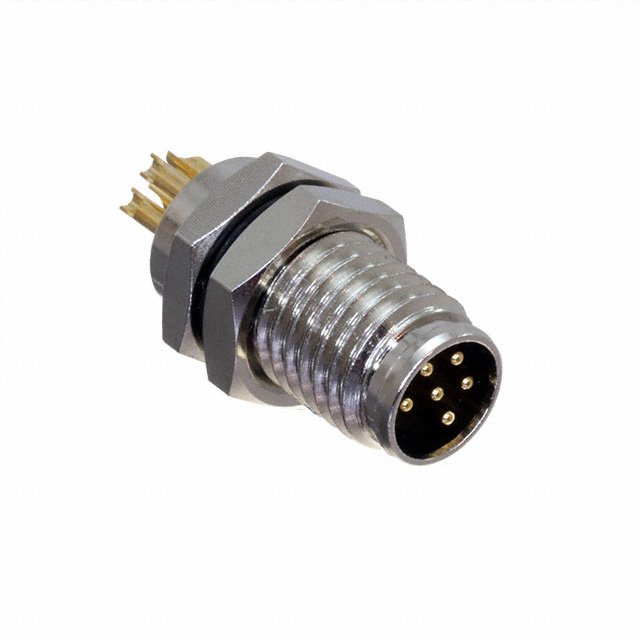

Specification	SD-MME06A-MMTPH-S70-000

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating	1 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Plastic
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	6
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-6
Shielding	Unshielded
Termination	Solder Cup

SD-MME Series

Part	Shell Size - Insert	Termination	Insert Material	Current Rating	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Mounting Feature	Shell Finish	Color	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness - Mating	Shielding	Shell Material	Fastening Type	Mounting Type	Contact Material	Number of Positions
Adam Tech SD-MME06A-MMTPH-S70-000	M8-6	Solder Cup	Plastic	1 A	Male Pins Receptacle	85 °C	-20 °C	Gold	Bulkhead Front Side Nut	Nickel	Silver	Metal	Dust Tight Waterproof	IP67	Flash	Unshielded	Brass	Threaded	Panel Mount	Brass	6
