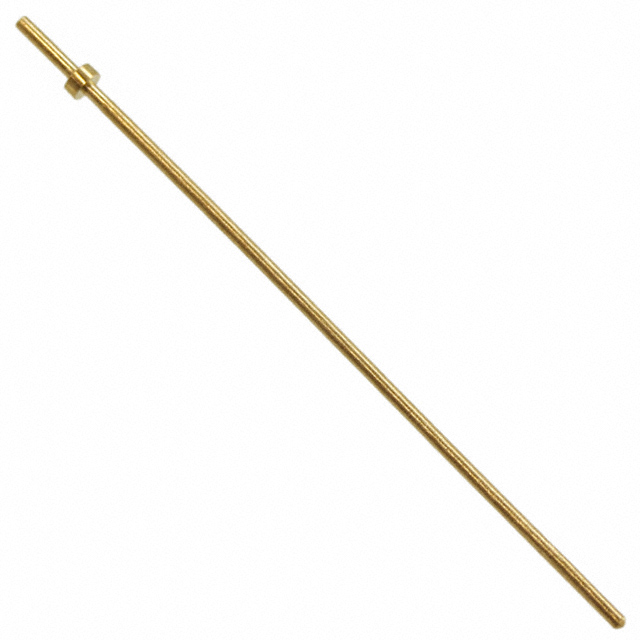

3128-5-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3128-5-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3128-5-00-15-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.17 mm |
| Flange Diameter [diameter] | 0.046 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 23.62 mm |
| Length - Above Flange [x] | 0.93 in |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall | 26.67 mm |
| Length - Overall [x] | 1.05 in |
| Mounting Hole Diameter [diameter] | 0.61 mm |
| Mounting Hole Diameter [diameter] | 0.024 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| 2500 | $ 0.22 | |||
Description
General part information
3128-5 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Documents
Technical documentation and resources
No documents available
