PF24020 NA005

Active

ALPHA WIRE

SLEEVING 0.032" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.032" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF24020 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	0.81 mm
Diameter - Inside [diameter]	0.032 in
Diameter - Outside [diameter]	1.45 mm
Diameter - Outside [diameter]	0.057 in
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.23 mm
Wall Thickness	0.009 in

SLEEVING 0.032" ID FBRGLASS 100'

Part	Color	Wall Thickness	Wall Thickness	Material Flammability Rating	Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Type Attributes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Environment Protection
ALPHA WIRE PF24020 NA005	Natural	0.23 mm	0.009 in	UL VW-1	Fiberglass	-60 °C	648 °C	100 ft	30.48 m	0.81 mm	0.032 in	Abrasion Resistant	Braided	1.45 mm	0.057 in	Sleeving	Corrosion Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

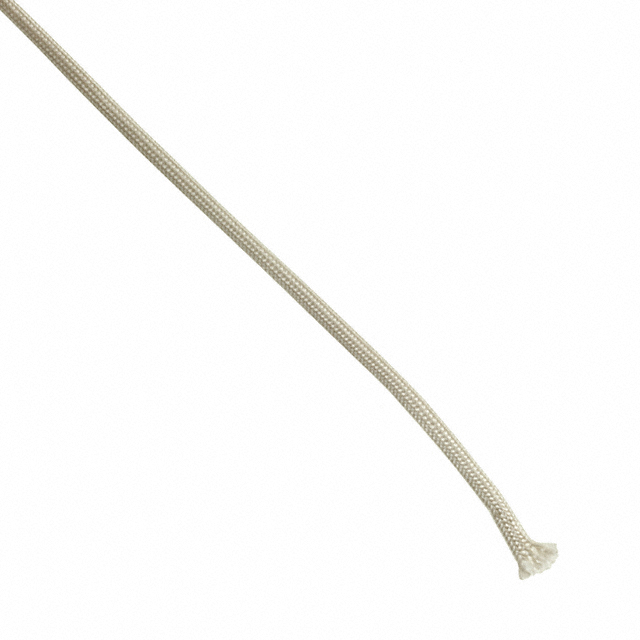

Natural Fiberglass Braided Sleeving 0.032" (0.81mm) 100' (30.48m)
