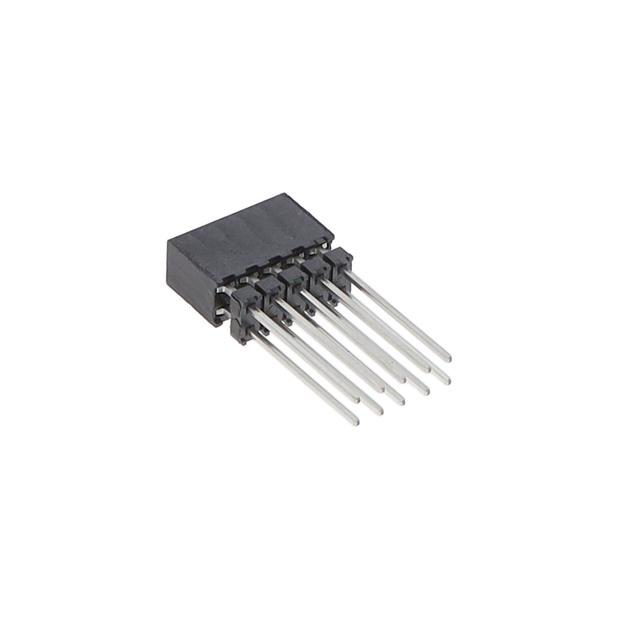

ESQT-105-02-L-D-354

Active

Samtec Inc.

CONN SOCKET 10POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 2.00 mm Shrouded Terminal Strip +2

ESQT-105-02-L-D-354

Active

Samtec Inc.

CONN SOCKET 10POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet 2.00 mm Shrouded Terminal Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESQT-105-02-L-D-354

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	12.6 mm
Contact Length - Post	0.496 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

ESQT-105 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Termination	Number of Positions	Material Flammability Rating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Style	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Number of Positions Loaded	Contact Shape	Contact Material	Connector Type	Fastening Type	Number of Rows	Contact Finish - Post	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ESQT-105-03-G-D-368	-55 °C	125 °C	3 µin	0.076 µm	Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.51 µm	20 µin	0.079 in	2 mm	Black	Board to Board Cable	Gold	9.35 mm	0.368 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Gold	4.5 A	0.079 in	2 mm	0.09 "	2.29 mm
Samtec Inc. ESQT-105-03-L-D-325	-55 °C	125 °C			Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.25 çm	10 çin	0.079 in	2 mm	Black	Board to Board Cable	Gold	8.25 mm	0.325 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Tin	4.5 A	0.079 in	2 mm	0.133 in	3.38 mm
Samtec Inc. ESQT-105-02-M-D-535	-55 °C	125 °C			Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.51 µm	20 µin	0.079 in	2 mm	Black	Board to Board Cable	Gold	13.6 mm	0.535 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Tin	4.5 A	0.079 in	2 mm			0.315 in	8 mm
Samtec Inc. ESQT-105-02-L-D-572	-55 °C	125 °C			Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.25 çm	10 çin	0.079 in	2 mm	Black	Board to Board Cable	Gold	14.53 mm	0.572 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Tin	4.5 A	0.079 in	2 mm	0.278 "	7.06 mm
Samtec Inc. ESQT-105-02-G-D-415	-55 °C	125 °C	3 µin	0.076 µm	Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.51 µm	20 µin	0.079 in	2 mm	Black	Board to Board Cable	Gold			Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Gold	4.5 A	0.079 in	2 mm	0.435 in	11.05 mm
Samtec Inc. ESQT-105-02-G-D-614	-55 °C	125 °C	3 µin	0.076 µm	Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.51 µm	20 µin	0.079 in	2 mm	Black	Board to Board Cable	Gold	15.6 mm	0.614 "	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Gold	4.5 A	0.079 in	2 mm			0.236 "	6 mm
Samtec Inc. ESQT-105-03-F-D-370	-55 °C	125 °C			Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.076 µm	3 µin	0.079 in	2 mm	Black	Board to Board Cable	Gold	9.4 mm	0.37 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Tin	4.5 A	0.079 in	2 mm			0.088 in	2.23 mm
Samtec Inc. ESQT-105-02-F-S-520	-55 °C	125 °C			Forked	Solder		UL94 V-0	Liquid Crystal Polymer (LCP)	0.076 µm	3 µin			Black	Board to Board Cable	Gold			Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	1	Tin	4.5 A	0.079 in	2 mm	0.33 in	8.38 mm
Samtec Inc. ESQT-105-02-L-D-354	-55 °C	125 °C			Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.25 çm	10 çin	0.079 in	2 mm	Black	Board to Board Cable	Gold	9 mm	0.354 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Tin	4.5 A	0.079 in	2 mm	0.496 in	12.6 mm
Samtec Inc. ESQT-105-02-L-D-431	-55 °C	125 °C			Forked	Solder	10	UL94 V-0	Liquid Crystal Polymer (LCP)	0.25 çm	10 çin	0.079 in	2 mm	Black	Board to Board Cable	Gold	10.95 mm	0.431 in	Through Hole	All	Square	Phosphor Bronze	Elevated Socket	Push-Pull	2	Tin	4.5 A	0.079 in	2 mm	0.419 in	10.64 mm
