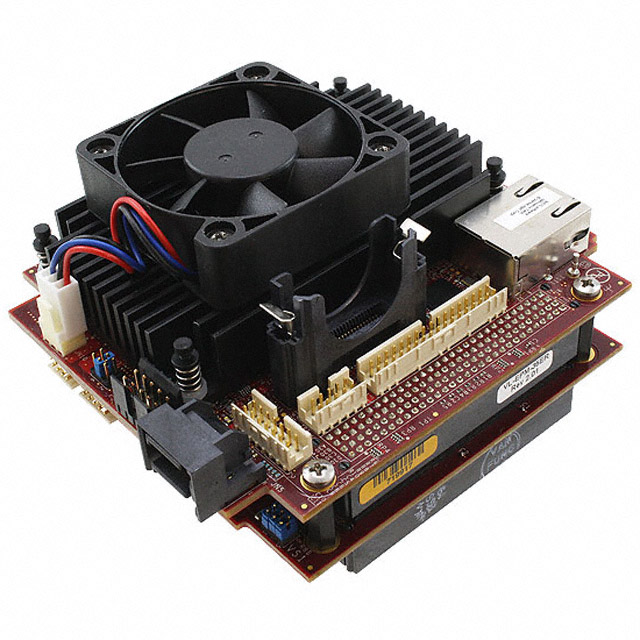

VL-EPM-35ER

Obsolete

VersaLogic Corporation

SBC 1.2GHZ 2 CORE 4GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VL-EPM-35ER

Obsolete

VersaLogic Corporation

SBC 1.2GHZ 2 CORE 4GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VL-EPM Series

Single Board Computer 1.2GHz 2 Core 4GB/0GB RAM Intel Core 2 Duo SP9300

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VL-EPM-35ER	VL-EPM Series

Cooling Type	Fan	Heat Plate, Fan, Heat Sink
Core Processor	Intel Core 2 Duo SP9300	Intel Core i3, Intel Core 2 Duo SP9300, Intel Core i7, Intel Core i3-7100U, Intel Core i7-7600U, Intel Core i5, Geode LX 800, Intel Core i5-7300U, Vortex86DX, Intel Atom E3826, Intel Atom E3815, Intel Atom Z520PT, Vortex86DX2
Digital I/O Lines	-	8 - 18
Ethernet	GbE (2)	GbE (2), (1)
Ethernet	-	2 - 1000 Mbps
Expansion Site/Bus	PC/104-Plus	PCIe/104, PC/104-Plus, PC/104-Plus noPassThru
Form Factor	PC/104	PC/104
Function	-	Ethernet, Video Card/Module, Power Supply
Number of Cores	2	1 - 2
Operating Temperature [Max]	85 °C	60 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Power (Watts)	15.5 W	2.6 - 21.3 W
RAM Capacity/Installed	4 GB, 0 GB	0 - 256 GB
RAM Capacity/Installed	-	8 GB
RAM Capacity/Installed	-	0 GB
RAM Capacity/Installed	-	1GB/1GB
RS-232 (422, 485)	4	2 - 4
Size / Dimension	3.78 in, 4.21 in	3.78 - 4.21 in
Size / Dimension	-	3.543 - 4.23 "
Size / Dimension	-	90 - 107.44 mm
Size / Dimension	-	3.77 - 4.23 in
Size / Dimension	-	95.75 - 107.44 mm
Speed	1.2 GHz	1.2 - 933 GHz
Storage Interface	eUSB, MiniBlade, SATA2 (2)	mSATA, SATA, microSD, eUSB, MiniBlade, SATA2 (2), Mini PCIe, SPI, CompactFlash, ATA66, IDE DOM, ATA100, Mini PCIe/mSATA, SATA (1)
USB	USB 2.0 (6)	USB 2.0 (4), USB 3.0 (2), USB 2.0 (6), USB 2.0 (2), USB 2.0 (5), USB 3.0 (1), USB 2.0 (7)
Video Core	-	SM750 - 128-Bit, 2D graphics engine
Video Outputs	VGA, LVDS	Mini Display Port, VGA, LVDS, miniDP
Watchdog Timer	True	True

VL-EPM Series

SBC 2.4GHZ 2 CORE 0GB/0GB RAM

Part	Core Processor	Expansion Site/Bus	Operating Temperature [Max]	Operating Temperature [Min]	Ethernet	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	RAM Capacity/Installed	RS-232 (422, 485)	Form Factor	Video Outputs	Storage Interface	USB	Cooling Type	Number of Cores	Digital I/O Lines	Speed	Power (Watts)	Ethernet	Size / Dimension
VersaLogic Corporation VL-EPME-42EAP-00	Intel Core i3	PCIe/104	85 °C	-40 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm	0 GB	4	PC/104	Mini Display Port	microSD, mSATA, SATA	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8
VersaLogic Corporation VL-EPM-35SR	Intel Core 2 Duo SP9300	PC/104-Plus	60 °C	0 °C						0 GB, 4 GB	4	PC/104	LVDS, VGA	eUSB, MiniBlade, SATA2 (2)	USB 2.0 (6)	Fan	2		2.26 GHz	21.3 W	GbE (2)	3.78 in, 4.21 in
VersaLogic Corporation VL-EPME-42EAP-04	Intel Core i3	PCIe/104	85 °C	-40 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm		4	PC/104	Mini Display Port	microSD, mSATA, SATA	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8
VersaLogic Corporation VL-EPME-42SAP-00	Intel Core i3	PCIe/104	60 °C	0 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm	0 GB	4	PC/104	Mini Display Port	microSD, mSATA, SATA	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8
VersaLogic Corporation VL-EPME-42EAP-08	Intel Core i3	PCIe/104	85 °C	-40 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm	8 GB	4	PC/104	Mini Display Port	microSD, mSATA, SATA	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8
VersaLogic Corporation VL-EPME-42ECP-08	Intel Core i7	PCIe/104	85 °C	-40 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm	8 GB	4	PC/104	Mini Display Port	microSD, mSATA, SATA	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8	3.9 GHz	13.3 W
VersaLogic Corporation VL-EPM-43SAP-04	Intel Core i3-7100U	PC/104-Plus	60 °C	0 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm		4	PC/104	miniDP	microSD, Mini PCIe, mSATA, SATA, SPI	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8
VersaLogic Corporation VL-EPM-43SCP-08	Intel Core i7-7600U	PC/104-Plus	60 °C	0 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm	8 GB	4	PC/104	miniDP	microSD, Mini PCIe, mSATA, SATA, SPI	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8	3.9 GHz	13.3 W
VersaLogic Corporation VL-EPME-42EBP-08	Intel Core i5	PCIe/104	85 °C	-40 °C	10 Mbps, 100 Mbps, 1000 Mbps	4.23 "	107.44 mm	3.77 in	95.75 mm	8 GB	4	PC/104	Mini Display Port	microSD, mSATA, SATA	USB 2.0 (4), USB 3.0 (2)	Heat Plate	2	8	3.5 GHz	12.5 W
VersaLogic Corporation VL-EPM-15H	Geode LX 800	PC/104-Plus	85 °C	-40 °C	10 Mbps, 100 Mbps	3.6 in	91.44 mm	3.8 "	96.52 mm	256 MB	4	PC/104	LVDS, VGA	ATA66, CompactFlash	USB 2.0 (4)	Heat Sink	1		500 MHz	5 W	(1)
