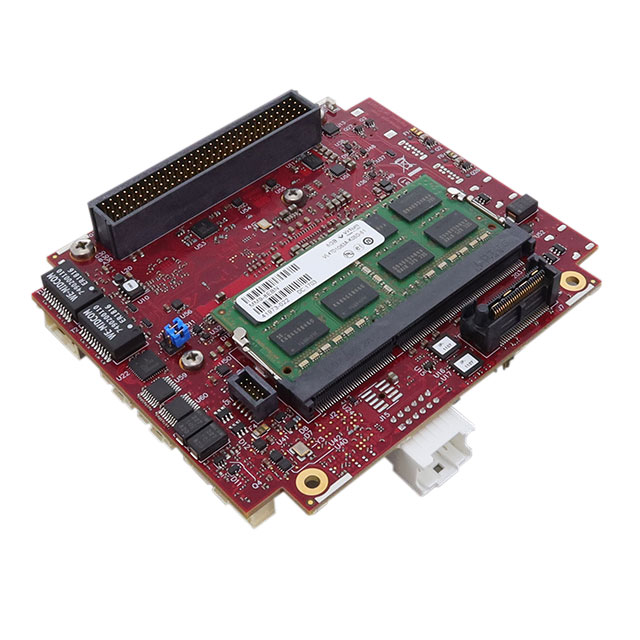

VL-EPME-42EBP-08
ObsoleteVersaLogic Corporation
SBC 3.5GHZ 2 CORE 8GB/8GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VL-EPME-42EBP-08
ObsoleteVersaLogic Corporation
SBC 3.5GHZ 2 CORE 8GB/8GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VL-EPME-42EBP-08 |
|---|---|
| Cooling Type | Heat Plate |
| Core Processor | Intel Core i5 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | PCIe/104 |
| Form Factor | PC/104 |
| Number of Cores | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 12.5 W |
| RAM Capacity/Installed | 8 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 4.23 " |
| Size / Dimension [x] | 107.44 mm |
| Size / Dimension [y] | 3.77 in |
| Size / Dimension [y] | 95.75 mm |
| Speed | 3.5 GHz |
| Storage Interface | mSATA, SATA, microSD |
| USB | USB 2.0 (4), USB 3.0 (2) |
| Video Outputs | Mini Display Port |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2261.00 | |
Description
General part information
VL-EPME-42EBP-08
Single Board Computer 3.5GHz 2 Core 8GB/8GB RAM Intel Core i5
Documents
Technical documentation and resources
