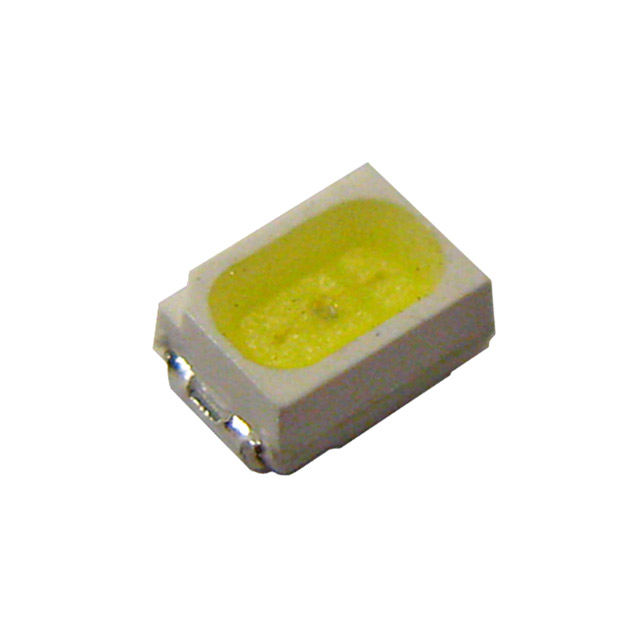

XZCWD105S
ActiveSunLED
LED WHITE CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZCWD105S
ActiveSunLED
LED WHITE CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCWD105S |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.5 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 597 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.7 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| Digi-Reel® | 1 | $ 0.54 | ||
| Tape & Reel (TR) | 2000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
XZCWD105 Series
White LED Indication - Discrete 3.3V 2-SMD, J-Lead
