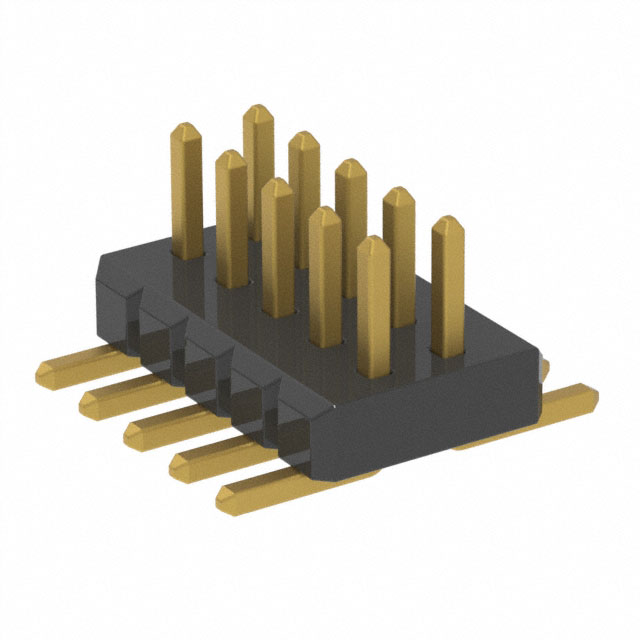

FTM-105-03-G-DV-TR

Active

Samtec Inc.

CONN HEADER SMD 10POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CLM Series Other Related Documents 03 +2

FTM-105-03-G-DV-TR

Active

Samtec Inc.

CONN HEADER SMD 10POS 1MM

Deep-Dive with AI

DocumentsDatasheet CLM Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTM-105-03-G-DV-TR

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.038 in
Insulation Height	0.97 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTM-105 Series

Part	Number of Positions Loaded	Shrouding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Contact Type	Contact Material	Mounting Type	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Features	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Mating
Samtec Inc. FTM-105-03-G-DV-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C	0.065 in	1.65 mm	2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)
Samtec Inc. FTM-105-03-F-DV-S-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C	0.065 in	1.65 mm	2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin	End Shrouds
Samtec Inc. FTM-105-03-LM-DV-SA	All	Unshrouded	Cuttable Header	-55 °C	125 °C	0.065 in	1.65 mm	2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)			Tin	Board Guide End Shrouds
Samtec Inc. FTM-105-02-L-DV	All	Unshrouded	Cuttable Header	-55 °C	125 °C			2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Tin		1.9 mm	0.075 in
Samtec Inc. FTM-105-02-F-DV	All	Unshrouded	Cuttable Header	-55 °C	125 °C			2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin		1.9 mm	0.075 in
Samtec Inc. FTM-105-02-FM-DV-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C			2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)			Tin		1.9 mm	0.075 in	Flash
Samtec Inc. FTM-105-02-L-DV-S-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C			2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Tin	End Shrouds	1.9 mm	0.075 in
Samtec Inc. FTM-105-02-F-DV-S-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C			2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin	End Shrouds	1.9 mm	0.075 in
Samtec Inc. FTM-105-02-L-DV-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C			2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Tin		1.9 mm	0.075 in
Samtec Inc. FTM-105-03-F-DV-TR	All	Unshrouded	Cuttable Header	-55 °C	125 °C	0.065 in	1.65 mm	2	Square	Black	0.039 in	1 mm	Push-Pull	0.038 in	0.97 mm	Male Pin	Phosphor Bronze	Surface Mount	2.8 A per Contact	10	Gold	0.039 "	1 mm	Solder	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1325	$ 1.57
