Description
General part information

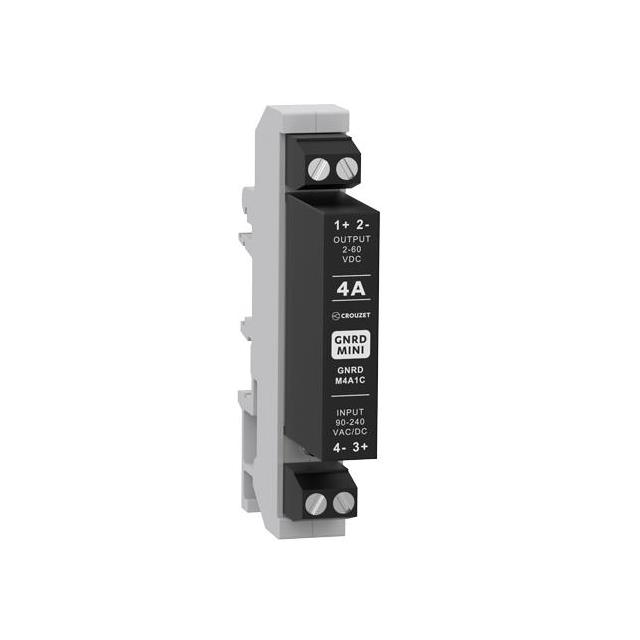

GNRDM4 Series
Solid State SPST-NO (1 Form A) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | GNRDM4A1C |
|---|---|
| Approval Agency | CE, UKCA |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 4 A |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Load (Max) | 36 V |
| Voltage - Load (Min) | 7 V |
