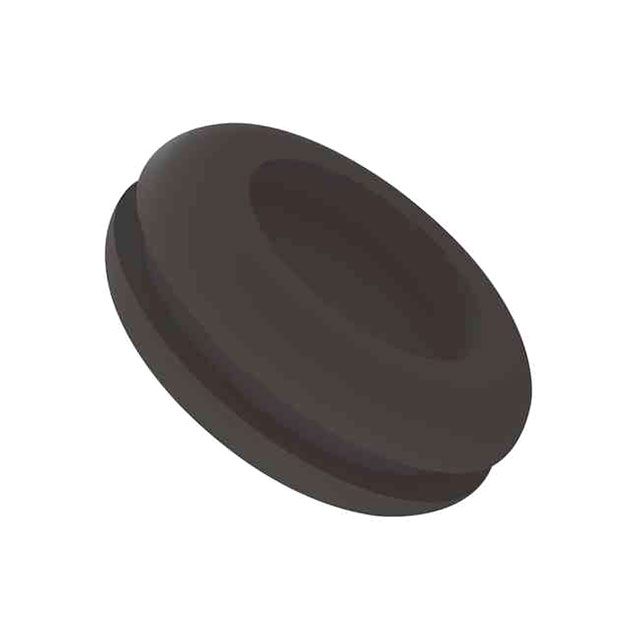

GRD1100091PA
ActiveEssentra Access Solutions
DIAPHRAGM GROMMET - TWO SIDED CU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GRD1100091PA
ActiveEssentra Access Solutions
DIAPHRAGM GROMMET - TWO SIDED CU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRD1100091PA |
|---|---|
| Bushing, Grommet Type | Grommet |
| Color | Black |
| Diameter - Inside [diameter] | 19.05 mm |
| Diameter - Inside [diameter] | 0.75 in |
| For Use With/Related Products | Wires, Cable |
| Material | Poly-Vinyl Chloride (PVC) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [diameter] | 25.4 mm |
| Panel Cutout Dimensions [diameter] | 1 in |
| Panel Thickness | 0.09 in |
| Panel Thickness | 2.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.97 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.60 | |||
| 2000 | $ 0.50 | |||
| 4000 | $ 0.49 | |||
Description
General part information
GRD1100091 Series
Circular - 1.000" (25.40mm) Grommet 0.750" (19.05mm) Black
