Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7NOB-1510M | A7NOB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 15 | 9 - 15 |
| Shielding | Unshielded | Unshielded |
| Type | DB15 | DB15, DB9, DB25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.16 | |
| 10 | $ 42.41 | |||
| 25 | $ 39.37 | |||
| 50 | $ 37.22 | |||
| 100 | $ 35.20 | |||
| 250 | $ 33.20 | |||
A7NOB Series
CABLE D-SUB-AMN15B/AE15G/AFN15B
| Part | Length | Length | Number of Positions | Shielding | 2nd Connector | Contact Finish | 1st Connector | Contact Finish Thickness | Contact Finish Thickness | Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7NOB-1510G | 10 ft | 3.05 m | 15 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB15 | |
TE Connectivity AMP Connectors A7NOB-0906M | 6 ft | 1.83 m | 9 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB9 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7NOB-1510M | 10 ft | 3.05 m | 15 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB15 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7NOB-1506G | 6 ft | 1.83 m | 15 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB15 | |
TE Connectivity AMP Connectors A7NOB-2510M | 10 ft | 3.05 m | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB25 | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7NOB-0910G | 10 ft | 3.05 m | 9 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB9 | |
TE Connectivity AMP Connectors A7NOB-0906G | 6 ft | 1.83 m | 9 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB9 | |
TE Connectivity AMP Connectors A7NOB-1506M | 6 ft | 1.83 m | 15 | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB15 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7NOB-2506G | 6 ft | 1.83 m | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB25 | ||
TE Connectivity AMP Connectors A7NOB-2506M | 6 ft | 1.83 m | Unshielded | Plug, Male Pins | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB25 | Multiple, Ribbon |
Description
General part information
A7NOB Series

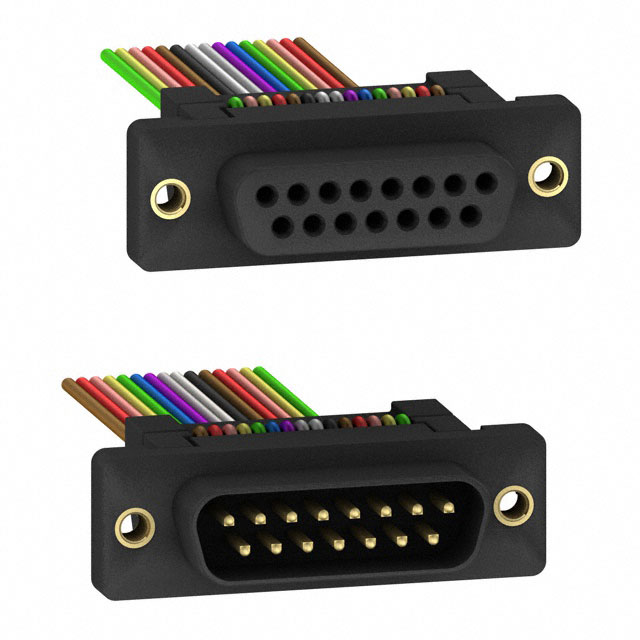

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
