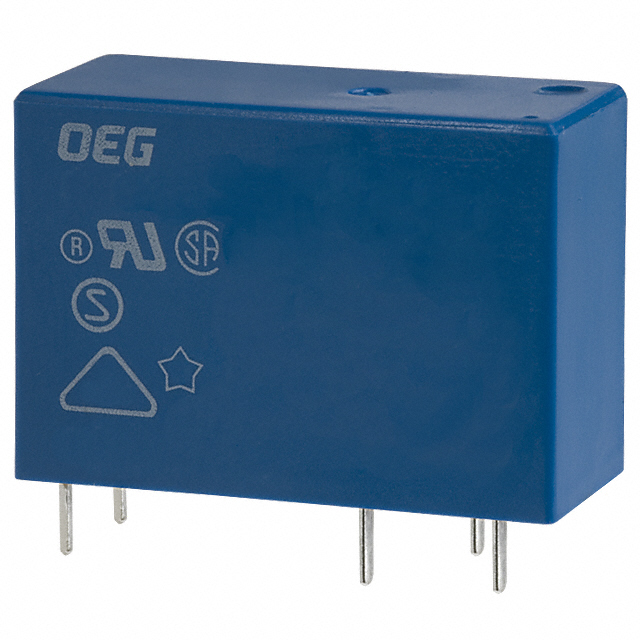

OMIH-SS-105LM,300

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OMIH-SS-105LM,300

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OMIH-SS-105LM,300

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	108 mA
Coil Resistance	48.5 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.25 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	250 VAC, 30 VDC
Termination Style	PC Pin

OMIH-SS Series

Part	Switching Voltage	Seal Rating	Coil Type	Approval Agency	Coil Voltage	Contact Material	Release Time	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Must Operate Voltage	Contact Form	Mounting Type	Relay Type	Termination Style	Operate Time	Must Release Voltage	Coil Current	Switching Voltage [Max]
TE Connectivity Potter & Brumfield Relays OMIH-SS-105LM,300	30 VDC 250 VAC	Sealed - Flux Protection	Non Latching	CQC CSA cURus VDE	5 VDC	Silver Tin Oxide (AgSnO)	8 ms	16 A	70 °C	-30 ░C	48.5 Ohms	3.75 VDC	SPST-NO (1 Form A)	Through Hole	General Purpose	PC Pin	20 ms	0.25 VDC	108 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-148LM,000	30 VDC 250 VAC	Sealed - Fully	Non Latching	CQC CSA cURus VDE	48 VDC	Silver (Ag)	8 ms	16 A	70 °C	-30 ░C	4.4 kOhms	36 VDC		Through Hole	General Purpose	PC Pin	20 ms	2.4 VDC	10.9 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-106LM,000	30 VDC 250 VAC	Sealed - Fully	Non Latching	CQC CSA cURus VDE		Silver (Ag)	8 ms	16 A	70 °C	-30 ░C	68 Ohms	4.5 VDC		Through Hole	General Purpose	PC Pin	20 ms	0.3 VDC	88.2 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-124LM,300	30 VDC 250 VAC	Sealed - Flux Protection	Non Latching	CQC CSA cURus VDE	24 VDC	Silver Tin Oxide (AgSnO)	8 ms	16 A	70 °C	-30 ░C		18 VDC	SPST-NO (1 Form A)	Through Hole	General Purpose	PC Pin	20 ms	1.2 VDC	21.8 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-112DM,300	30 VDC 250 VAC	Sealed - Flux Protection	Non Latching	CQC CSA cURus VDE	12 VDC	Silver Tin Oxide (AgSnO)	8 ms	16 A	60 °C	-30 ░C	200 Ohms	8.4 VDC	SPST-NO (1 Form A)	Through Hole	General Purpose	PC Pin	15 ms	0.6 VDC	60 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-124L,000		Sealed - Flux Protection	Non Latching	CQC CSA cURus VDE	24 VDC	Silver Cadmium Oxide (AgCdO)	8 ms	16 A	70 °C	-30 ░C		18 VDC	SPDT (1 Form C)	Through Hole	General Purpose	PC Pin	20 ms	1.2 VDC	21.8 mA	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMIH-SS-112L,000	30 VDC 250 VAC	Sealed - Fully	Non Latching	CQC CSA cURus VDE	12 VDC	Silver (Ag)	8 ms	16 A	70 °C	-30 ░C	270 Ohms	9 VDC		Through Hole	General Purpose	PC Pin	20 ms	0.6 VDC	44.4 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-112L,300	30 VDC 250 VAC	Sealed - Flux Protection	Non Latching	CQC CSA cURus VDE	12 VDC	Silver Tin Oxide (AgSnO)	8 ms	16 A	70 °C	-30 ░C	270 Ohms	9 VDC	SPDT (1 Form C)	Through Hole	General Purpose	PC Pin	20 ms	0.6 VDC	44.4 mA
TE Connectivity Potter & Brumfield Relays OMIH-SS-124D,300	30 VDC 250 VAC	Sealed - Flux Protection	Non Latching	CQC CSA cURus VDE	24 VDC	Silver Tin Oxide (AgSnO)	8 ms	16 A	60 °C	-30 ░C	820 Ohms	16.8 VDC	SPDT (1 Form C)	Through Hole	General Purpose	PC Pin	15 ms	1.2 VDC	29.3 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OMIH-SS Series

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
