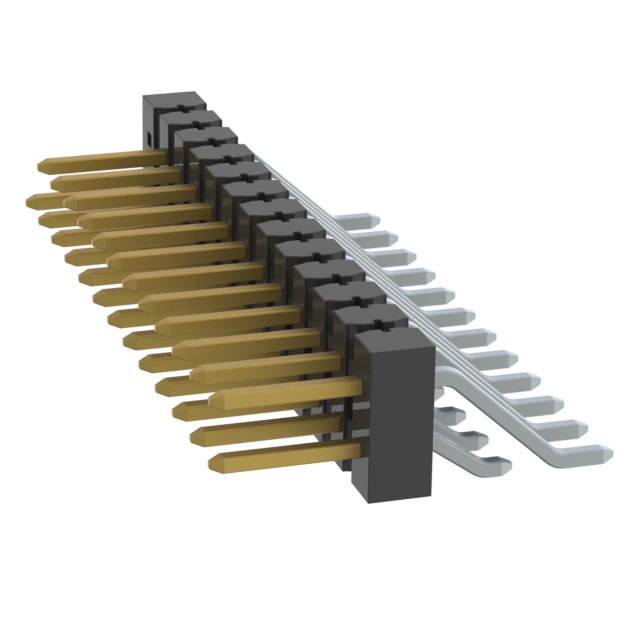

TSM-113-01-S-DH-026

Active

Samtec Inc.

CONN HEADER SMD R/A 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-113-01-S-DH-026

Active

Samtec Inc.

CONN HEADER SMD R/A 26POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-113-01-S-DH-026

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Number of Positions Loaded	25
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-113 Series

...

Part	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Rows	Shrouding	Insulation Color	Contact Material	Mounting Type	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Number of Positions Loaded
Samtec Inc. TSM-113-01-S-SH	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	30 Áin	0.76 Ám	Male Pin	1	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header	All	0.1 in	2.54 mm	Push-Pull	13	Tin	0.23 in	5.84 mm	UL94 V-0	Gold	Solder	3.05 mm	0.12 in
Samtec Inc. TSM-113-01-F-DV-A-P-TR	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	3 µin	0.076 µm	Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount	Cuttable Header	All	0.1 in	2.54 mm	Push-Pull	26	Tin	0.23 in	5.84 mm	UL94 V-0	Gold	Solder	2.54 mm	0.1 in	Board Guide Pick and Place	2.54 mm	0.1 in
Samtec Inc. TSM-113-01-SM-SH-K	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	30 Áin	0.76 Ám	Male Pin	1	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header	All	0.1 in	2.54 mm	Push-Pull	13	Tin	0.23 in	5.84 mm	UL94 V-0	Gold	Solder	3.05 mm	0.12 in	Pick and Place
Samtec Inc. TSM-113-02-F-DH-A-P	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	3 µin	0.076 µm	Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header	All	0.1 in	2.54 mm	Push-Pull	26	Tin		8.13 mm	UL94 V-0	Gold	Solder	6.1 mm	0.24 in	Board Guide Pick and Place	2.54 mm	0.1 in	0.32 in
Samtec Inc. TSM-113-02-L-DV-TR	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	10 çin	0.25 çm	Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount	Cuttable Header	All	0.1 in	2.54 mm	Push-Pull	26	Tin		8.13 mm	UL94 V-0	Gold	Solder	2.54 mm	0.1 in		2.54 mm	0.1 in	0.32 in
Samtec Inc. TSM-113-01-S-DH-LC	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	30 Áin	0.76 Ám	Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header	All	0.1 in	2.54 mm	Push-Pull	26	Tin	0.23 in	5.84 mm	UL94 V-0	Gold	Solder	6.1 mm	0.24 in		2.54 mm	0.1 in
Samtec Inc. TSM-113-01-T-DH-LC-P	Square	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Board to Board Cable			Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header	All	0.1 in	2.54 mm	Push-Pull	26	Tin	0.23 in	5.84 mm	UL94 V-0		Solder	6.1 mm	0.24 in	Board Lock Pick and Place	2.54 mm	0.1 in
Samtec Inc. TSM-113-01-S-DH-026	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board to Board Cable	30 Áin	0.76 Ám	Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header		0.1 in	2.54 mm	Push-Pull	26	Tin	0.23 in	5.84 mm	UL94 V-0	Gold	Solder	6.1 mm	0.24 in		2.54 mm	0.1 in		25
Samtec Inc. TSM-113-01-T-SH-K	Square	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Board to Board Cable			Male Pin	1	Unshrouded	Black	Phosphor Bronze	Surface Mount Right Angle	Header	All	0.1 in	2.54 mm	Push-Pull	13	Tin	0.23 in	5.84 mm	UL94 V-0		Solder	3.05 mm	0.12 in	Pick and Place
Samtec Inc. TSM-113-01-TM-DV-LC-P	Square	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Board to Board Cable			Male Pin	2	Unshrouded	Black	Phosphor Bronze	Surface Mount	Cuttable Header	All	0.1 in	2.54 mm	Push-Pull	26	Tin	0.23 in	5.84 mm	UL94 V-0		Solder	2.54 mm	0.1 in	Board Lock Pick and Place	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	17	$ 5.47

Description

General part information

TSM-113 Series

Connector Header Surface Mount, Right Angle 26 position 0.100" (2.54mm)
