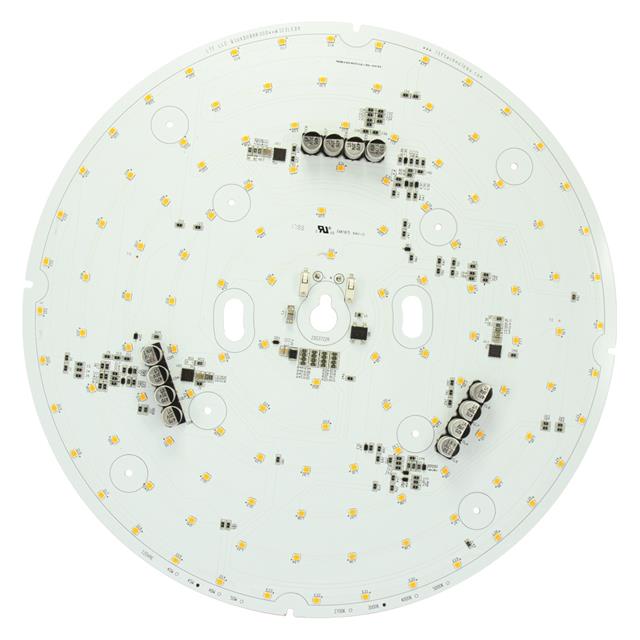

QLUXDOBAR30045W12930

Active

LTF technology LLC

LED ENG QLUX WHT ROUND 3000K

QLUXDOBAR30045W12930

Active

LTF technology LLC

LED ENG QLUX WHT ROUND 3000K

Description Specifications Series Pricing CAD Documents

Description

General part information

QLUX Series

LED Lighting COBs Engines Modules LED Engine QLUX White, Neutral Round

Technical Specifications

Parameters and characteristics for this part

Specification	QLUXDOBAR30045W12930

CCT (K)	3000 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Neutral
Configuration	Round
CRI (Color Rendering Index)	94
Features	Triac, Dimming-ELV
Lens Type	Flat
Lumens/Watt	90 lm/W
Luminous Flux	4174 lm
Size / Dimension Diameter	300 mm
Temperature - Test	25 °C
Type	LED Engine
Viewing Angle	160 °
Voltage - Forward (Vf) (Typ)	120 V

QLUX Series

Part	Type	Features	Size / Dimension Diameter	Color	Lens Type	CRI (Color Rendering Index)	Configuration	Viewing Angle	Temperature - Test	CCT (K)	CCT Description	Luminous Flux	Voltage - Forward (Vf) (Typ)	Lumens/Watt	Height	Current - Max	Size / Dimension Width	Size / Dimension Length	Current - Test	CCT (K) Minimum	CCT (K) Maximum
LTF technology LLC QLUXDOBAR30045W12930	LED Engine	Dimming-ELV Triac	300 mm	Neutral White	Flat	94	Round	160 °	25 °C	3000 K	3-Step MacAdam Ellipse	4174 lm	120 V	90 lm/W
LTF technology LLC QLUX10W350C28V27K9CR	LED Engine	With Connector		Neutral White	Flat	90	Rectangle	160 °	25 °C	2700 K	3-Step MacAdam Ellipse	822 lm	28 V	83 lm/W	3.5 mm	350 mA	41.95 mm	83.9 mm	350 mA
LTF technology LLC QLUXCOBI1512932WD-P1	Chip On Board (COB)	Dimming		Neutral White	Flat	98	Rectangle		25 °C	1800 K	3-Step MacAdam Ellipse	1200 lm	34 V	82 lm/W	1.5 mm	350 mA	12 mm	15 mm	350 mA	1800 K	3000 K
LTF technology LLC QLUXL57512W24LED840L	LED Engine	Dimming		Neutral White	Flat	80	Linear	120 °	50 °C	4000 K	3-Step MacAdam Ellipse	1250 lm	23.2 V	152 lm/W		450 mA	1 in	575 mm	350 mA
LTF technology LLC QLUXDOBAL29205W56927	LED Engine	Dimming-ELV Triac		Neutral White	Flat	92	Linear	160 °	25 °C	2700 K	3-Step MacAdam Ellipse	450 lm	120 V	93 lm/W			38 mm	292 mm
LTF technology LLC QLUXDOBAR22830W11927	LED Engine	Dimming-ELV Triac	228 mm	Neutral White	Flat	90	Round	160 °	25 °C	2700 K	3-Step MacAdam Ellipse	2500 lm	120 V	80 lm/W
LTF technology LLC QLUXDOBAR22830W11930	LED Engine	Dimming-ELV Triac	228 mm	Neutral White	Flat	90	Round	160 °	25 °C	3000 K	3-Step MacAdam Ellipse	2600 lm	120 V	80 lm/W
LTF technology LLC QLUXCOBI181893016KWD	Chip On Board (COB)	Dimming		Neutral White	Flat	95	Square		25 °C			2170 lm	34 V	90 lm/W	1 mm	700 mA	18 mm	18 mm	700 mA	1800 K	3000 K
LTF technology LLC QLUXDOBAL59925W84930	LED Engine	Dimming-ELV Triac		Neutral White	Flat	93	Linear	160 °	25 °C	3000 K	3-Step MacAdam Ellipse	2200 lm	120 V	94 lm/W	13 mm		38 mm	599 mm
LTF technology LLC QLUXDOBAL29205W56930	LED Engine	Dimming-ELV Triac		Neutral White	Flat	92	Linear	160 °	25 °C	3000 K	3-Step MacAdam Ellipse	500 lm	120 V	93 lm/W			38 mm	292 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

QLUXDOBAR30045W12930 | Datasheet
