Q-1U04G0005.25M

Active

Amphenol Custom Cable

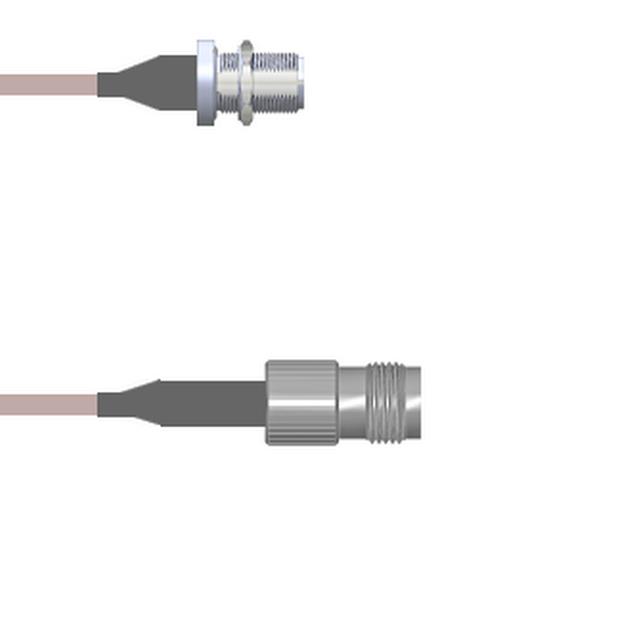

CBL ASSY NTYPE-TNC JK-JK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U04G0005.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JK-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U04G0005.25M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms

Q-1U04G0 Series

Part	Features	1st Connector	Color	1st Connector Mounting Feature	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	Cable Type	2nd Connector	2nd Contact Gender	Length	Length	Length	Overall Impedance	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-1U04G00051.5M	Shielded	N-Type Jack	Copper	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-316	TNC Jack	Female	59.1 in	4.9 ft	1.5 m	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0005002M	Shielded	N-Type Jack	Copper	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-316	TNC Jack	Female	78.7 in	6.6 ft	2 m	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0003002M	Shielded	N-Type Jack	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-174	TNC Jack	Female	78.7 in	6.6 ft	2 m	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0005.25M	Shielded	N-Type Jack	Copper	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-316	TNC Jack	Female				50 Ohms	11 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-1U04G0003024i	Shielded	N-Type Jack	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-174	TNC Jack	Female	24 "		609.6 mm	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0003.25M	Shielded	N-Type Jack	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-174	TNC Jack	Female				50 Ohms	11 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-1U04G0005006i	Shielded	N-Type Jack	Copper	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-316	TNC Jack	Female	6 in		152.4 mm	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0003060i	Shielded	N-Type Jack	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-174	TNC Jack	Female	5 '	5 ft	1.5 m	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0003084i	Shielded	N-Type Jack	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-174	TNC Jack	Female	84 in	7 ft	2.1 m	50 Ohms	11 GHz
Amphenol Custom Cable Q-1U04G0005108i	Shielded	N-Type Jack	Copper	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Female	RG-316	TNC Jack	Female	108 in	9 ft	2.7 m	50 Ohms	11 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.53
		25	$ 89.80
		50	$ 88.07
		100	$ 86.34
		250	$ 84.61

Description

General part information

Q-1U04G0 Series

Cable Assembly Coaxial N-Type to TNC RG-316 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
