Description

General part information

5204 Series

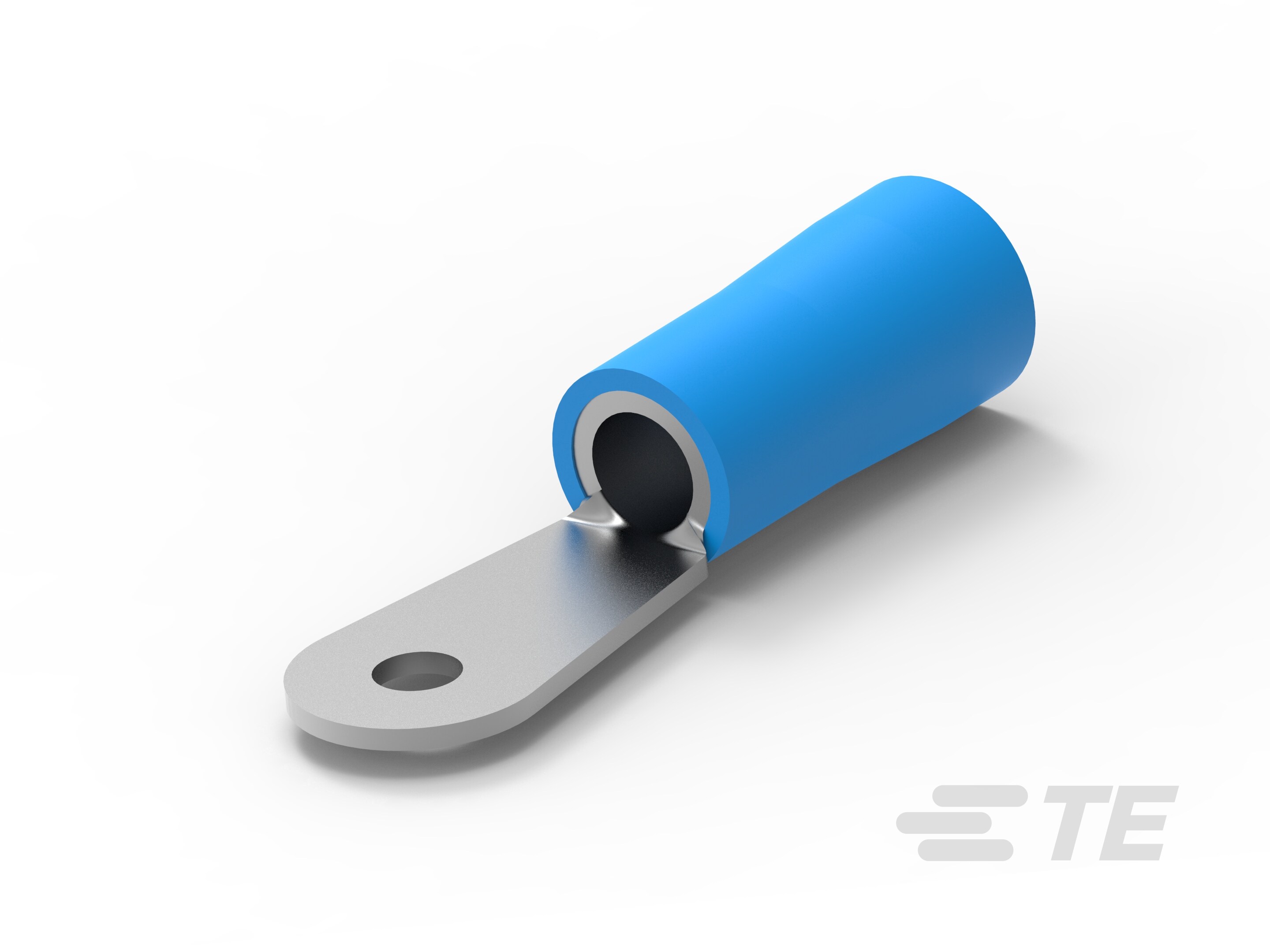

Closed Ring Tongue Terminal, 6 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification52042
ColorBlue
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Insulation Diameter0.436 in
Length - Overall1.844 in
Material - InsulationPVC, Poly-Vinyl Chloride
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size8 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.045 in
Width - Outer Edges0.5 in
Wire Gauge6 AWG
