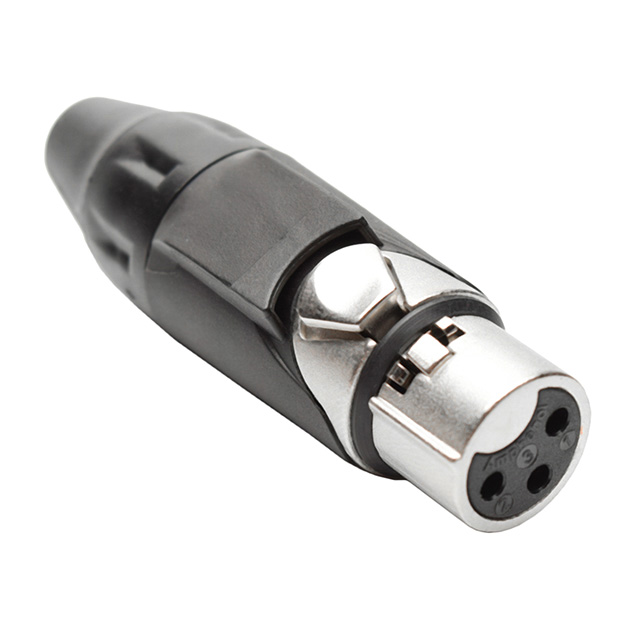

AX3F Series

Part	Shell Finish	Color	Mounting Type	Contact Finish - Mating	Orientation	Features	Fastening Type	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Current Rating	Shell Size - Insert	Shell Material	Termination	Connector Type	Number of Positions
McGill Microwave Systems AX3F9M	Nickel	Silver	Free Hanging (In-Line)	Tin	Keyed	Backshell Cable Clamp	Latch Lock	IP40	-25 °C	75 °C	Metal	15 A	XLR	Zinc Die Cast	Solder Cup	Female Sockets Plug	3

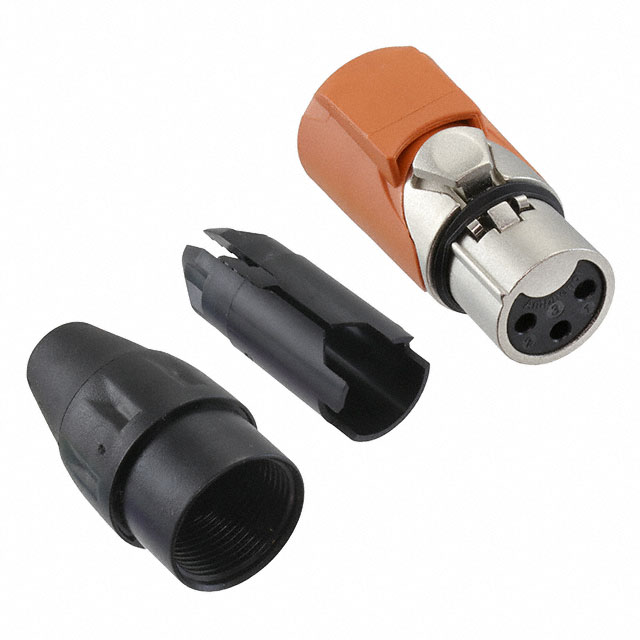

McGill Microwave Systems AX3F3M	Nickel	Silver	Free Hanging (In-Line)	Silver	Keyed	Backshell Cable Clamp	Latch Lock	IP40	-25 °C	75 °C	Metal	15 A	XLR	Zinc Die Cast	Solder Cup	Female Sockets Plug	3

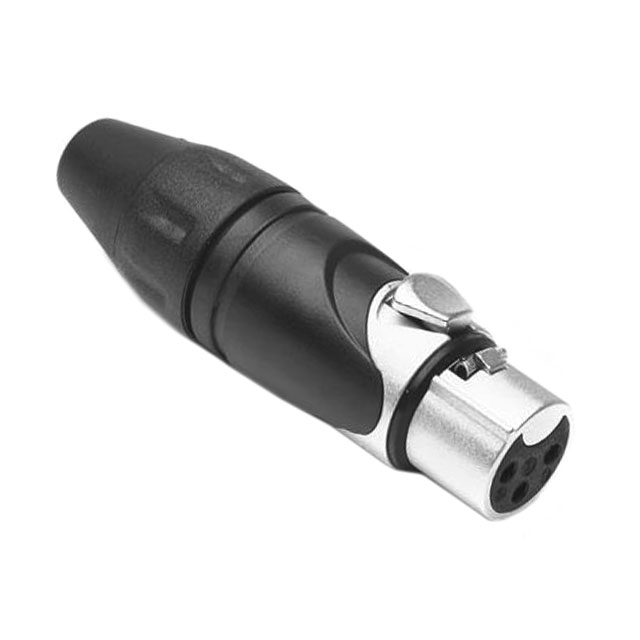

McGill Microwave Systems AX3F	Nickel	Silver	Free Hanging (In-Line)	Silver	Keyed	Backshell Cable Clamp	Latch Lock	IP40	-25 °C	75 °C	Metal	15 A	XLR	Zinc Die Cast	Solder Cup	Female Sockets Plug	3
McGill Microwave Systems AX3F9M-AU	Nickel	Silver	Free Hanging (In-Line)	Gold	Keyed	Backshell Cable Clamp	Latch Lock	IP40	-25 °C	75 °C	Metal	15 A	XLR	Zinc Die Cast	Solder Cup	Female Sockets Plug	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
