Specification	RJFTV7SA2G07100BTX

Cable Type	Round Cable
Color	Gray
Connector Type	Jack to Plug, Ethernet, RJ45
Features	Circular Threaded Coupling
Length	2.3 ft
Mounting Type	Panel Mount, Flange
Number of Contacts	8
Number of Positions	8
Shielding	Double Shielded
Style	Cat5e, Industrial Environments - IP68

RJFTV7 Series

Part	Shielding	Color	Mounting Type	Style	Connector Type	Cable Type	Number of Positions	Number of Contacts	Features	Length	Ratings	Orientation	Number of Rows	Number of Ports	LED Color	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Type	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Feature	Ingress Protection IP Rating	Ingress Protection Description	Shell Material	Finish	Tab Direction
McGill Microwave Systems RJFTV7SA2G07100BTX	Double Shielded	Gray	Flange Panel Mount	Cat5e Industrial Environments - IP68	Ethernet Jack to Plug RJ45	Round Cable	8	8	Circular Threaded Coupling	2.3 ft

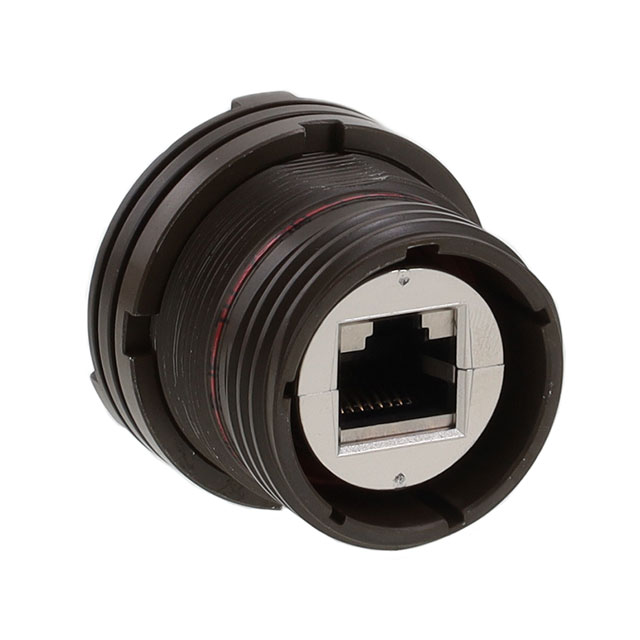

McGill Microwave Systems RJFTV7SA5GF059	Unshielded		Bulkhead Panel Mount		Ethernet Jack RJ45		8	8	Circular Threaded Coupling		Cat5e	Straight	1	1	Does Not Contain LED	PC Board Solder
McGill Microwave Systems RJFTV7SC1G																	-40 °C	85 °C	Coupler	8p8c (RJ45) Jack	8p8c (RJ45) Jack

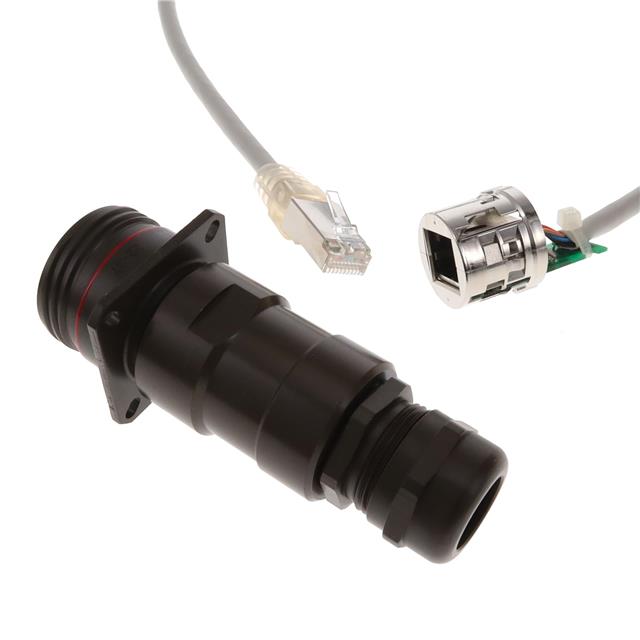

McGill Microwave Systems RJFTV7PEM2G15100BTX	Double Shielded	Gray	Flange Panel Mount	Cat5e Industrial Environments - IP68	Ethernet Jack to Plug RJ45	Round Cable	8	8	Circular Threaded Coupling	4.92 ft

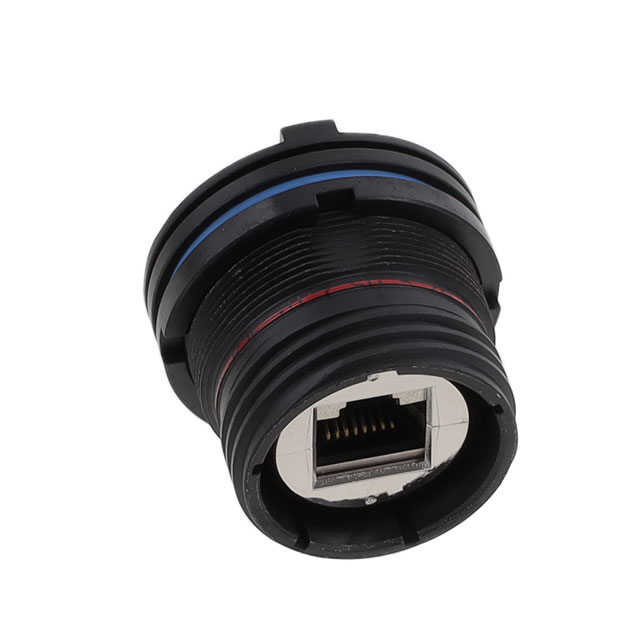

McGill Microwave Systems RJFTV7SA5ZNF059	Unshielded		Bulkhead Panel Mount		Ethernet Jack RJ45		8	8	Circular Threaded Coupling		Cat5e	Straight	1	1	Does Not Contain LED	PC Board Solder
McGill Microwave Systems RJFTV7SAPEM1G	Shielded		Bulkhead Panel Mount						Circular Threaded Coupling		Cat5e						-40 °C	85 °C	Coupler	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Front Side Nut	IP68	Dust Tight Waterproof	Aluminum	Olive Drab Cadmium Plated

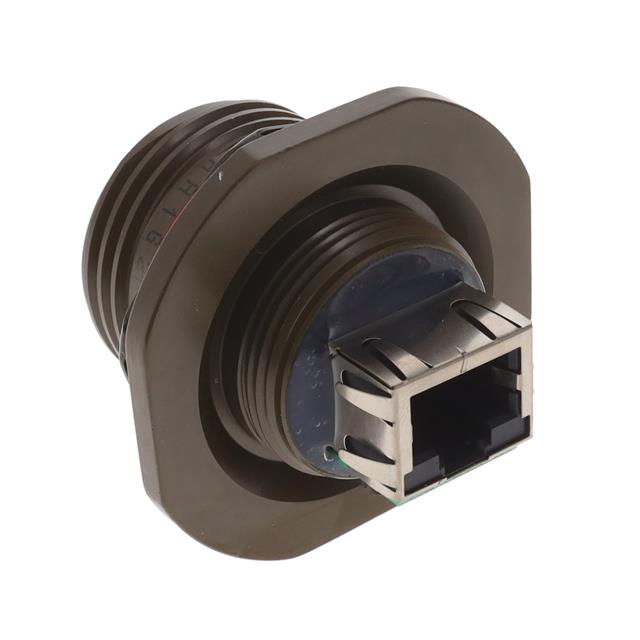

McGill Microwave Systems RJFTV7HA1G	Unshielded		Bulkhead Panel Mount		Ethernet Jack RJ45		8	8	Circular Threaded Coupling		Cat5e	Straight	1	1	Does Not Contain LED	PC Board Solder	-40 °C	85 °C					IP67	Dust Tight Waterproof			User Selectable

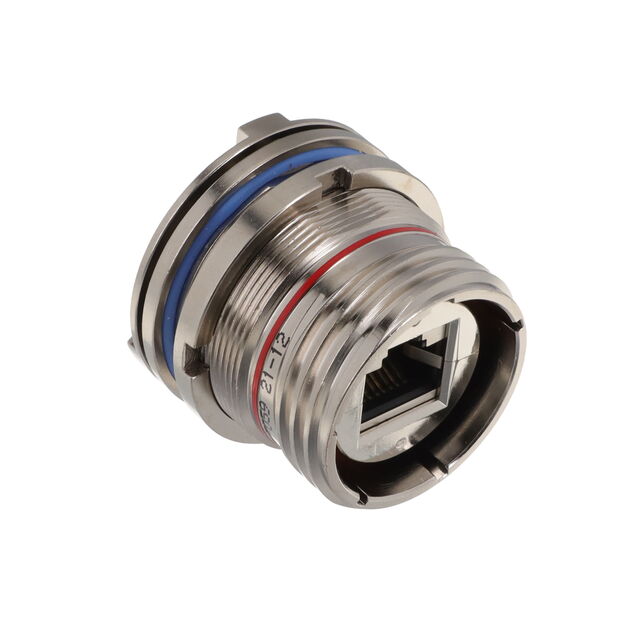

McGill Microwave Systems RJFTV7SA5NF059	Unshielded		Bulkhead Panel Mount		Ethernet Jack RJ45		8	8	Circular Threaded Coupling		Cat5e	Straight	1	1	Does Not Contain LED	PC Board Solder
McGill Microwave Systems RJFTV7PEM1BZ																	-40 °C	85 °C	Coupler	8p8c (RJ45) Jack	8p8c (RJ45) Jack

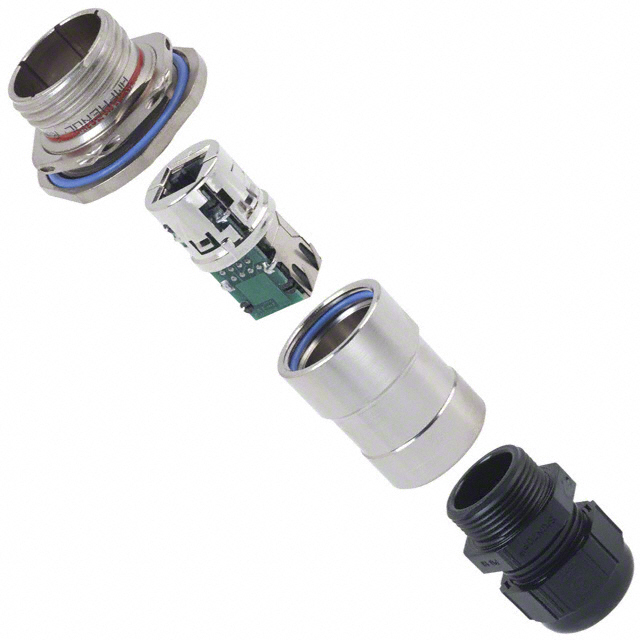

McGill Microwave Systems RJFTV7PE1N	Unshielded		Bulkhead Panel Mount						Circular Threaded Coupling		Cat5e						-40 °C	85 °C	Coupler	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Front Side Nut	IP67	Dust Tight Waterproof	Aluminum	Nickel Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RJFTV7SA2G07100BTX | Datasheet
