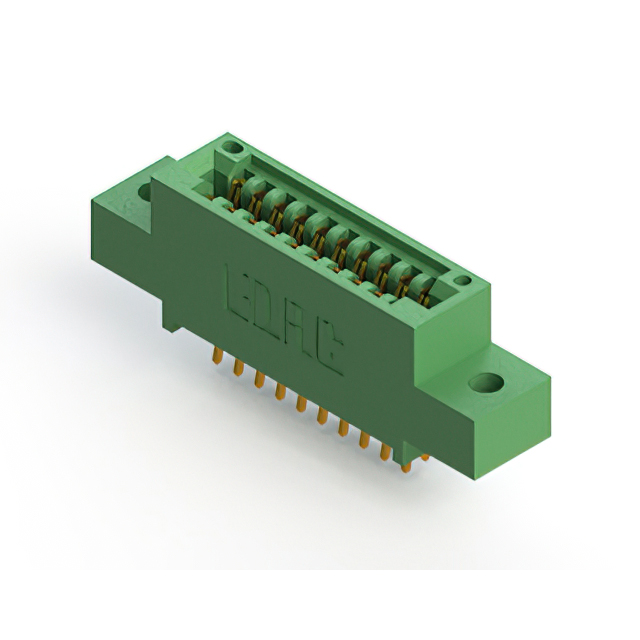

345-020-556-502
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-020-556-502
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-020-556-502 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-020 Series
...
| Part | Read Out | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Features | Contact Finish | Color | Pitch [x] | Pitch [x] | Flange Feature | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Through Hole | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Single Edge | Polyester Thermoplastic | 20 | 20 | 20 | 1 | 10 Áin | 0.25 Ám | 20 | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Card Guides | Gold | Green | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Dual | Through Hole | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Guides | Gold | Green | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 10 | |||||||
EDAC Inc. | Dual | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Guides | Gold | Green | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 10 | |||||||
EDAC Inc. | Dual | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Green | 2.54 mm | 0.1 in | 10 | 3.25 mm | 0.128 in | |||||||
EDAC Inc. | Dual | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Solder Eyelet(s) | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | Gold | Green | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 | |||||||
EDAC Inc. | Single | Through Hole | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Single Edge | Polyester Thermoplastic | 20 | 20 | 20 | 1 | 10 Áin | 0.25 Ám | 20 | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Card Guides | Gold | Green | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Dual | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | Gold | Green | 2.54 mm | 0.1 in | Top Mount Opening Unthreaded | 10 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | Dual | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | Gold | Green | 2.54 mm | 0.1 in | 10 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | Dual | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | Gold | Green | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 | |||||||
EDAC Inc. | Dual | Through Hole | Copper Alloy | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 20 | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Green | 2.54 mm | 0.1 in | Floating Bobbin Top Mount Opening | 10 | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.01 | |
Description
General part information
345-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
