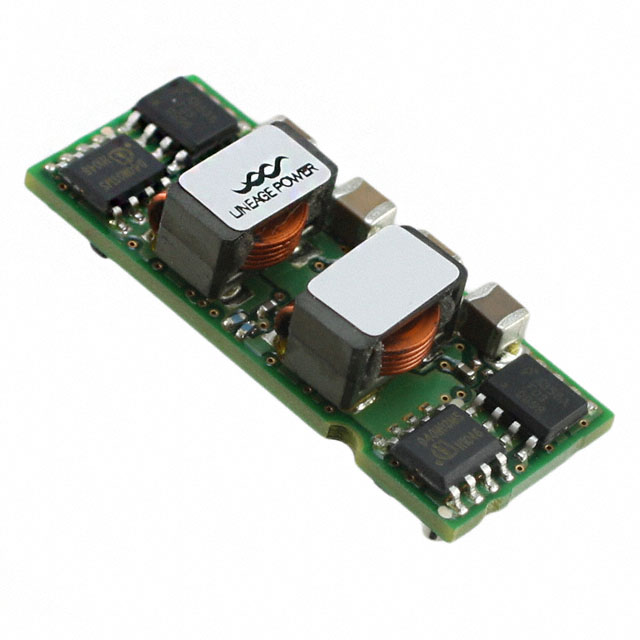

ATH030A0X3-SRZ

Active

OmniOn Power™

DC DC CONVERTER 0.8-3.63V 109W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.8-3.63V 109W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 0.8-3.63V 109W

Part	Voltage - Input (Max) [Max]	Features	Mounting Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Control Features	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
OmniOn Power™ ATH030A0X3-SRZ	5.5 V	OCP, OTP, Remote On/Off, UVLO	Surface Mount	0.8 V	3.63 V	30 A	92.2 %	109 W	Active Low, Enable	1	4.5 V	85 °C	-40 °C	Module	ITE (Commercial)	Non-Isolated PoL Module
OmniOn Power™ ATH030A0X3-SRPHZ	5.5 V	OCP, OTP, Remote On/Off, UVLO	Surface Mount	0.8 V	3.6 V	30 A	92.2 %	100 W	Active Low, Enable	1	4.5 V	85 °C	-40 °C	10-SMD Module	ITE (Commercial)	Non-Isolated PoL Module	33 mm	13.5 mm	9.1 mm	1.3 "	0.53 in	0.36 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	400	$ 22.32

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.63V 30A 4.5V - 5.5V Input

Technical documentation and resources

No documents available
