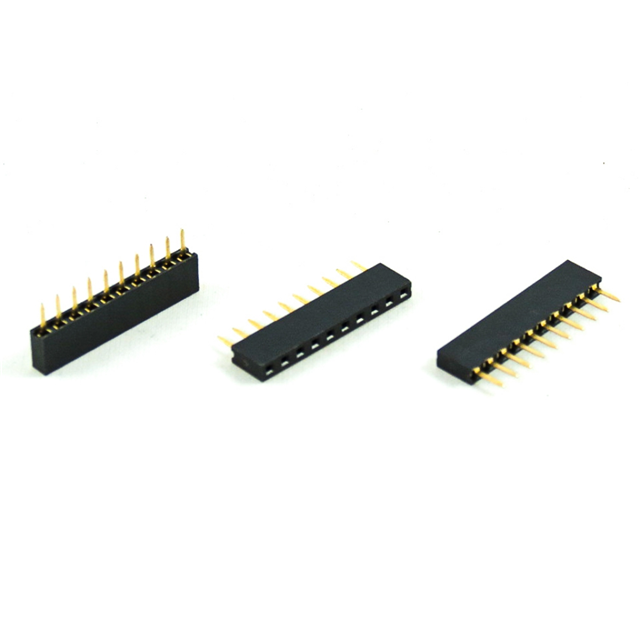

2141-1X04G00SB

Active

Oupiin

PCB SOCKET, SINGLE ROW, 4 PINS,

Deep-Dive with AI

Search across all available documentation for this part.

2141-1X04G00SB

Active

Oupiin

PCB SOCKET, SINGLE ROW, 4 PINS,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2141-1X04G00SB

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

2141 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Number of Positions	Contact Material	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Insulation Material	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Termination	Mounting Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish Thickness - Post
Oupiin 2141-2X02G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	4	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold	0.079 in	2 mm	Female Socket	Flash
Oupiin 2141-1X04G00SB	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	4	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	1	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold			Female Socket	Flash
Oupiin 2141-2X25G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	50	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold	0.079 in	2 mm	Female Socket	Flash
Oupiin 2141-2X16G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull		Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold	0.079 in	2 mm	Female Socket	Flash
Oupiin 2141-1X05G00SB	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull		Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	1	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold			Female Socket	Flash
Oupiin 2141-1X20G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	20	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	1	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold			Female Socket	Flash
Oupiin 2141-2X07G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	14	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold	0.079 in	2 mm	Female Socket	Flash
Oupiin 2141-2X20G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	40	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold	0.079 in	2 mm	Female Socket	Flash
Oupiin 2141-2X10G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	20	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold	0.079 in	2 mm	Female Socket	Flash
Oupiin 2141-1X09G00SA	105 ░C	-55 °C	UL94 V-0	Socket	0.177 in	4.5 mm	Black	Push-Pull	9	Phosphor Bronze	3.2 mm	0.126 in	Gold	0.079 in	2 mm	1	Liquid Crystal Polymer (LCP)	Square	All	Flash	Solder	Through Hole	Gold			Female Socket	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		100	$ 0.27
		1000	$ 0.22
		10000	$ 0.17

Description

General part information

2141 Series

4 Position Socket Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
