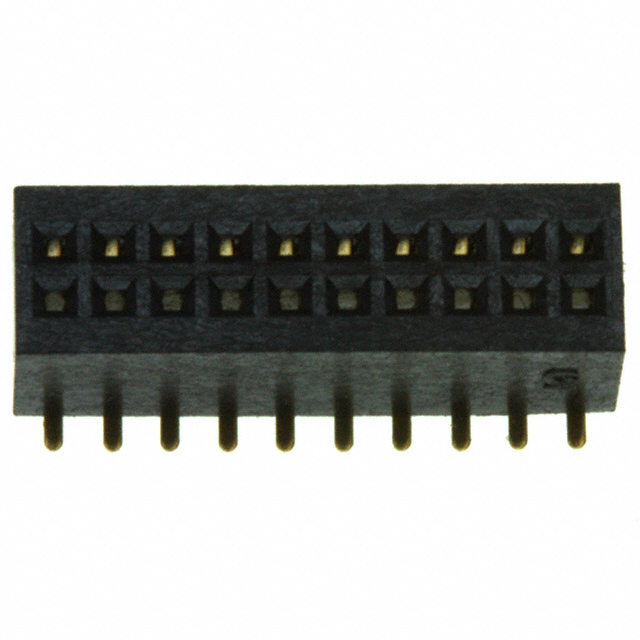

SFM315-LPGE-D10-SP-BK
ActiveSullins Connector Solutions
CONN HDR 20POS 0.039 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
SFM315-LPGE-D10-SP-BK
ActiveSullins Connector Solutions
CONN HDR 20POS 0.039 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM315-LPGE-D10-SP-BK |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.13 in |
| Insulation Height | 3.3 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Termination | Solder |
SFM315 Series
| Part | Number of Positions | Insulation Material | Contact Material | Contact Finish - Post | Mounting Type | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Color | Termination | Number of Positions Loaded | Number of Rows | Contact Finish Thickness - Post | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Shape | Contact Finish - Mating | Features | Material Flammability Rating | Contact Type | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 12 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | Board Guide | UL94 V-0 | Female Socket | Header | 10 çin | 0.25 çm | |
Sullins Connector Solutions | 72 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | UL94 V-0 | Female Socket | Header | Flash | |||
Sullins Connector Solutions | 20 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | Board Guide | UL94 V-0 | Female Socket | Header | 10 çin | 0.25 çm | |
Sullins Connector Solutions | 50 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | UL94 V-0 | Female Socket | Header | 10 çin | 0.25 çm | ||
Sullins Connector Solutions | 26 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | Board Guide | UL94 V-0 | Female Socket | Header | 10 çin | 0.25 çm | |
Sullins Connector Solutions | 66 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | UL94 V-0 | Female Socket | Header | Flash | |||
Sullins Connector Solutions | 18 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | Board Guide | UL94 V-0 | Female Socket | Header | 10 çin | 0.25 çm | |
Sullins Connector Solutions | 14 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | UL94 V-0 | Female Socket | Header | Flash | |||
Sullins Connector Solutions | 6 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | Board Guide | UL94 V-0 | Female Socket | Header | Flash | ||
Sullins Connector Solutions | 6 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | Surface Mount | Push-Pull | 0.039 in | 1 mm | Black | Solder | All | 2 | Flash | 125 °C | -40 °C | 0.039 " | 1 mm | 0.13 in | 3.3 mm | Square | Gold | UL94 V-0 | Female Socket | Header | 10 çin | 0.25 çm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 2.05 | |
Description
General part information
SFM315 Series
20 Position Header Connector 0.039" (1.00mm) Surface Mount Gold
Documents
Technical documentation and resources
No documents available
