MS70S-G10-R

Active

Menics

COMPLETE UNIT RED FLASH

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT RED FLASH

Technical Specifications

Parameters and characteristics for this part

Specification	MS70S-G10-R

Function - Lighting	Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lamp Type	Xenon
Light Color	Red
Number of Stacks	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	110 VAC/DC

Part	Ingress Protection	Lamp Type	Voltage - Supply	Function - Lighting	Type	Number of Stacks	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Light Color	Voltage - Supply [Min]	Voltage - Supply [Max]
Menics MS70S-G10-R	IP65 - Dust Tight Water Resistant	Xenon	110 VAC/DC	Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Red
Menics MS70S-M00-R	IP65 - Dust Tight Water Resistant	Xenon		Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Red	12 V	48 V
Menics MS70S-M00-B	IP65 - Dust Tight Water Resistant	Xenon		Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C		12 V	48 V
Menics MS70S-M00-G	IP65 - Dust Tight Water Resistant	Xenon		Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Green	12 V	48 V
Menics MS70S-P10-B	IP65 - Dust Tight Water Resistant	Xenon	110 VAC/DC	Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C
Menics MS70S-M10-R	IP65 - Dust Tight Water Resistant	Xenon	110 VAC/DC	Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Red
Menics MS70S-P00-R	IP65 - Dust Tight Water Resistant	Xenon		Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Red	12 V	48 V
Menics MS70S-P00-B	IP65 - Dust Tight Water Resistant	Xenon		Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C		12 V	48 V
Menics MS70S-G00-Y	IP65 - Dust Tight Water Resistant	Xenon		Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Yellow	12 V	48 V
Menics MS70S-G20-R	IP65 - Dust Tight Water Resistant	Xenon	220 VAC	Flashing	Complete Unit	1	Wire Leads	50 °C	-20 C	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.80

General part information

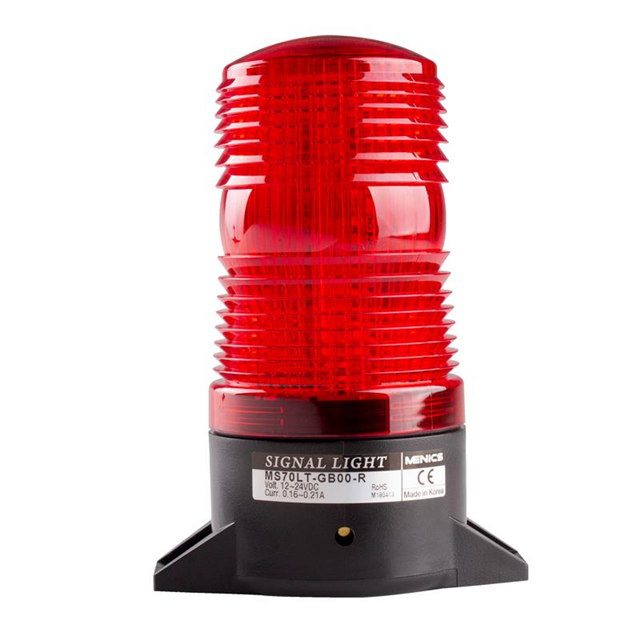

Stack Light Complete Unit Red Xenon Wire Leads
