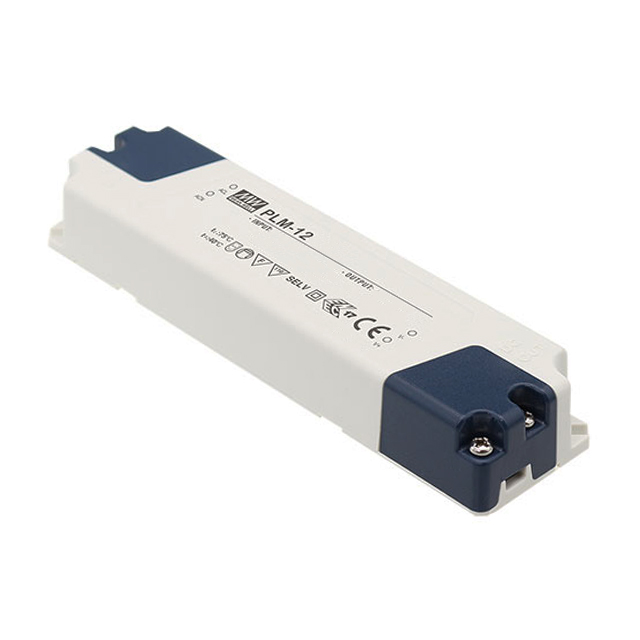

PLM-12-700
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 11-18V 700MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLM-12-700
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 11-18V 700MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLM-12-700 |
|---|---|
| Approval Agency | CE, cURus, CB, ENEC |
| Current - Output (Max) [Max] | 700 mA |
| Efficiency | 83 % |
| Features | SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 13 W |
| Ratings | IP30 |
| Size / Dimension [x] | 5.71 in |
| Size / Dimension [x] | 145 mm |
| Size / Dimension [y] | 1.5 in |
| Size / Dimension [y] | 38 mm |
| Size / Dimension [z] | 0.87 in |
| Size / Dimension [z] | 22 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 110 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 18 V |
| Voltage - Output [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.99 | |
| 5 | $ 12.98 | |||
| 10 | $ 12.57 | |||
| 25 | $ 12.04 | |||
Description
General part information
PLM-12 Series
700mA 11 ~ 18V Constant Current LED Driver AC DC Converter Topology 1 Output
