TQ2SS-4.5V-X
ActivePanasonic Electric Works

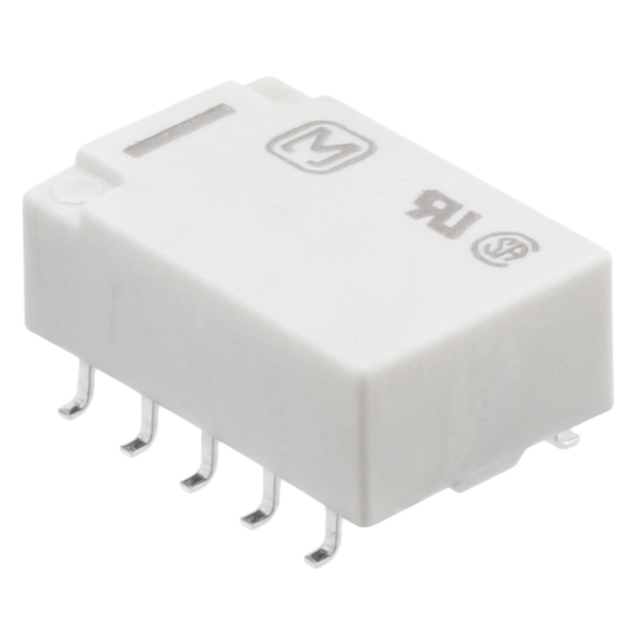

RELAY TELECOM DPDT 2A 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
TQ2SS-4.5V-X
ActivePanasonic Electric Works
RELAY TELECOM DPDT 2A 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TQ2SS-4.5V-X |
|---|---|
| Coil Current | 31 mA |
| Coil Resistance | 145 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4.5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 250 VA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.38 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | Telecom |
| Release Time | 4 ms |
| Switching Voltage | 125 VAC, 220 VDC |
| Termination Style | Gull Wing |
TQ2SS Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Relay Type | Mounting Type | Termination Style | Contact Form | Coil Voltage | Contact Material | Contact Rating (Current) | Must Operate Voltage | Coil Current | Switching Voltage | Operate Time | Coil Resistance | Release Time | Load - Max Switching | Coil Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Electric Works | 85 °C | -40 °C | 0.45 VDC | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 4.5 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 3.38 VDC | 31 mA | 125 VAC 220 VDC | 4 ms | 145 Ohms | 4 ms | 250 VA 440 W | Non Latching | |
Panasonic Electric Works | 85 °C | -40 °C | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | 2 A | 4.5 VDC | 23.3 mA | 125 VAC 220 VDC | 4 ms | 257 Ohms | 4 ms | 125 VA 220 W | Latching Dual Coil | CSA UR | ||
Panasonic Electric Works | 85 °C | -40 °C | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 12 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 9 VDC | 5.8 mA | 125 VAC 220 VDC | 4 ms | 2057 Ohms | 4 ms | 125 VA 220 W | Latching Single Coil | CSA UR | |
Panasonic Electric Works | 85 °C | -40 °C | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 12 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 9 VDC | 11.7 mA | 125 VAC 220 VDC | 4 ms | 1030 Ohms | 4 ms | 250 VA 440 W | Latching Dual Coil | ||
Panasonic Electric Works | 85 °C | -40 °C | 0.5 VDC | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 5 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 3.75 VDC | 28.1 mA | 125 VAC 220 VDC | 4 ms | 178 Ohms | 4 ms | 250 VA 440 W | Non Latching | |
Panasonic Electric Works | 85 °C | -40 °C | 0.45 VDC | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 4.5 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 3.38 VDC | 31 mA | 125 VAC 220 VDC | 4 ms | 145 Ohms | 4 ms | 125 VA 220 W | Non Latching | CSA UR |
Panasonic Electric Works | 85 °C | -40 °C | 4.8 VDC | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 48 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 36 VDC | 6.3 mA | 125 VAC 220 VDC | 4 ms | 7.68 kOhms | 4 ms | 250 VA 440 W | Non Latching | |
Panasonic Electric Works | 85 °C | -40 °C | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 1.5 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 1.13 VDC | 93.8 mA | 125 VAC 220 VDC | 4 ms | 16 Ohms | 4 ms | 125 VA 220 W | Latching Dual Coil | CSA UR | |
Panasonic Electric Works | 85 °C | -40 °C | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | 2 A | 2.25 VDC | 46.7 mA | 125 VAC 220 VDC | 4 ms | 64.3 Ohms | 4 ms | 125 VA 220 W | Latching Dual Coil | CSA UR | ||
Panasonic Electric Works | 85 °C | -40 °C | 1.2 VDC | Telecom | Surface Mount | Gull Wing | DPDT (2 Form C) | 12 VDC | Gold (Au) Silver Nickel (AgNi) | 2 A | 9 VDC | 11.7 mA | 125 VAC 220 VDC | 4 ms | 1030 Ohms | 4 ms | 250 VA 440 W | Non Latching |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 2.44 | |
Description
General part information
TQ2SS Series
Telecom Relay DPDT (2 Form C) Surface Mount
