MAX9924UEVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX9924
Deep-Dive with AI
Search across all available documentation for this part.
MAX9924UEVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX9924
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9924UEVKIT+ | MAX9924 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Current - Supply | - | 5 mA |
| Embedded | False | False |
| Function | Sensor, Variable Reluctance | Sensor, Variable Reluctance |
| Grade | - | Automotive |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Logic |
| Package / Case | - | 10-MSOP, 10-TFSOP |
| Package / Case | - | 3 mm |
| Package / Case | - | 0.118 in |
| Primary Attributes | Differential Inputs | Differential Inputs |
| Qualification | - | AEC-Q100 |
| Secondary Attributes [Max] | 5.5 V | 5.5 V |
| Secondary Attributes [Min] | 4.5 V | 4.5 V |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-uMAX/uSOP |
| Type | Interface | Sensor Interface, Interface |
| Utilized IC / Part | MAX9924U | MAX9924U |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 72.61 | |
MAX9924 Series
IC VR SENSOR INTERFACE 10UMAX
| Part | Type | Package / Case | Package / Case [x] | Package / Case [x] | Grade | Output Type | Qualification | Mounting Type | Supplier Device Package | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Contents | Supplied Contents | Secondary Attributes [Max] | Secondary Attributes [Min] | Function | Utilized IC / Part | Primary Attributes | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9924UAUB/V+T | Sensor Interface | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Automotive | Logic | AEC-Q100 | Surface Mount | 10-uMAX/uSOP | Differential | 125 °C | -40 °C | 5 mA | ||||||||
Analog Devices Inc./Maxim Integrated MAX9924UEVKIT+ | Interface | Board(s) | Board(s) | 5.5 V | 4.5 V | Sensor, Variable Reluctance | MAX9924U | Differential Inputs | |||||||||||||
Analog Devices Inc./Maxim Integrated MAX9924UAUB+T | Sensor Interface | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Logic | Surface Mount | 10-uMAX/uSOP | Differential | 125 °C | -40 °C | 5 mA | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9924UAUB+ | Sensor Interface | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Logic | Surface Mount | 10-uMAX/uSOP | Differential | 125 °C | -40 °C | 5 mA | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9924UAUB/V+ | Sensor Interface | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Automotive | Logic | AEC-Q100 | Surface Mount | 10-uMAX/uSOP | Differential | 125 °C | -40 °C | 5 mA |
Description
General part information
MAX9924 Series

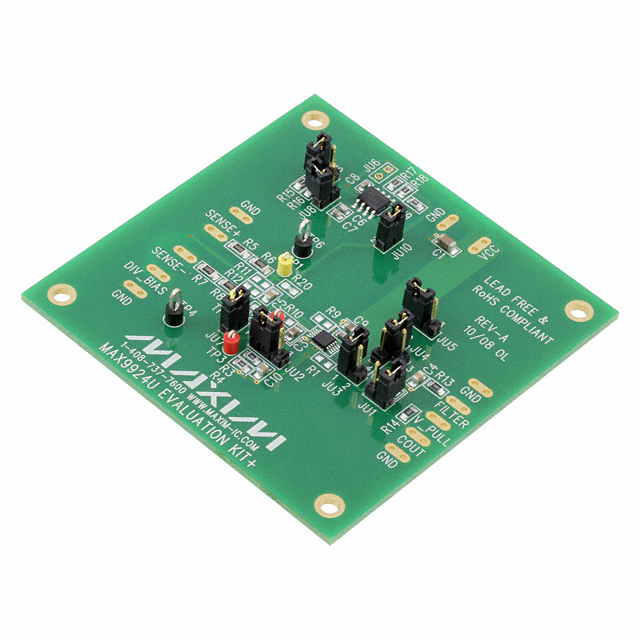

MAX9924U Sensor, Variable Reluctance Interface Evaluation Board
