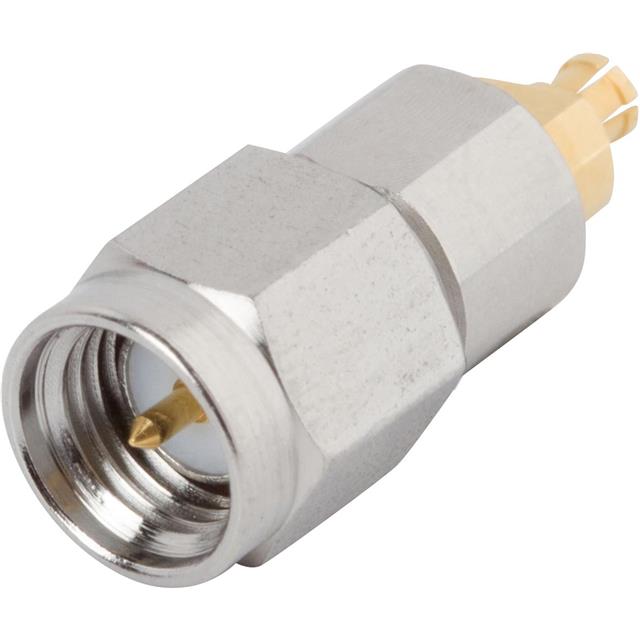

Specification	1132-4003

Adapter Series	SMA to SMPM
Adapter Type	Plug to Jack
Body Finish	Passivated, Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	SMPM Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	SMA Plug
Dielectric Material	Polychlorotrifluoroethylene (PCTFE), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max	18 GHz
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Style	Straight

1132-40 Series

Part	Center Contact Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Body Material	Body Finish	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Conversion Type	Center Contact Plating	Fastening Type	Frequency - Max	Center Gender	Style	Mounting Type	Impedance	Convert From (Adapter End)	Adapter Series	Adapter Type

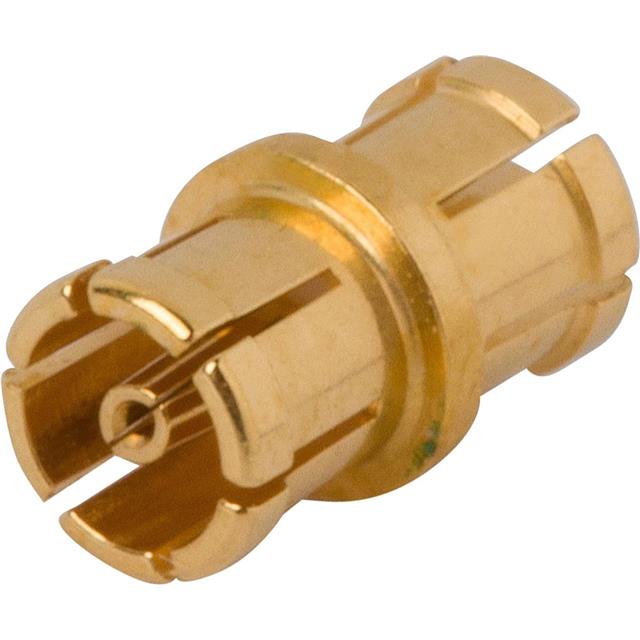

McGill Microwave Systems 1132-4021	Beryllium Copper	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Beryllium Copper	Gold	Female Socket	SMPM Jack	Same Series	Gold	Snap-On	65 GHz	Female	Straight	Free Hanging (In-Line)	50 Ohm	Female Socket SMPM Jack	SMPM to SMPM	Jack to Jack
McGill Microwave Systems 1132-4003	Beryllium Copper	Polychlorotrifluoroethylene (PCTFE) Polytetrafluoroethylene (PTFE)			Beryllium Copper Stainless Steel	Gold Passivated	Male Pin	SMA Plug	Between Series	Gold	Snap-On Threaded	18 GHz	Female Male	Straight	Free Hanging (In-Line)	50 Ohm	Female Socket SMPM Jack	SMA to SMPM	Plug to Jack
