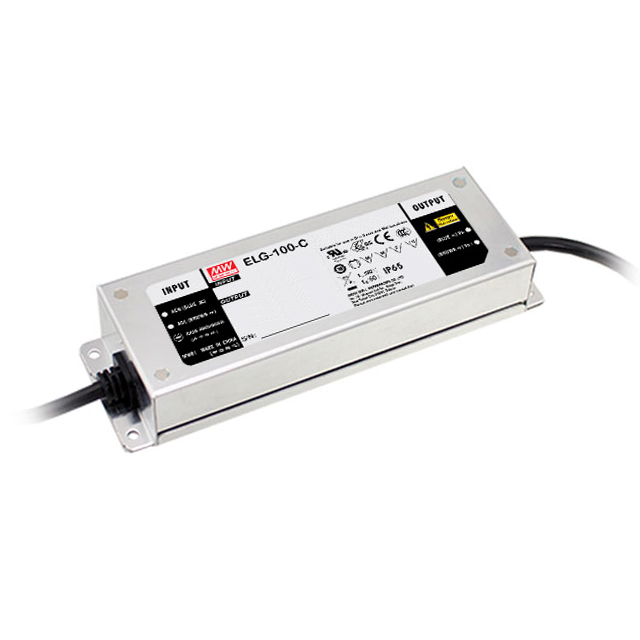

Specification	ELG-100-C1050

Approval Agency	CE, cURus, ENEC, CCC, CB
Current - Output (Max)	1.05 A
Efficiency	90 %
Features	SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	100 W
Ratings	IP67
Size / Dimension Height	1.4 in
Size / Dimension Length	6.89 in
Size / Dimension Width	2.48 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	305 V
Voltage - Input (Min)	100 VAC
Voltage - Isolation	3750 VDC
Voltage - Output (Max)	85 V
Voltage - Output (Min)	48 V

ELG-100 Series

...

Part	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Voltage - Input (Min)	Power (Watts)	Type	Voltage - Isolation	Efficiency	Topology	Voltage - Input (Max)	Features	Termination Style	Current - Output (Max)	Voltage - Output (Max)	Voltage - Output (Min)	Ratings	Mounting Type	Standard Number	Dimming	Voltage - Output
MEAN WELL USA Inc. ELG-100-C700DA	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus EAC ENEC RCM	100 VAC	100 W	Constant Current	3750 VDC	90 %	AC DC Converter	305 V	OTP OVP SCP	Wire Leads	700 mA	143 V	71 V	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-24D2	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus EAC ENEC UKCA	100 VAC	96 W	Constant Current Voltage	3750 VDC	88 %	AC DC Converter	305 V	OCP OTP OVP SCP	Wire Leads	4 A			IP67	Chassis Mount	UL 8750	Analog PWM	24 V
MEAN WELL USA Inc. ELG-100-C700B-3Y	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus EAC ENEC KC RCM	100 VAC	100 W	Constant Current	3750 VDC	90 %	AC DC Converter	305 V	OTP OVP SCP	Wire Leads	700 mA	143 V	71 V	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-48A-3Y	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus EAC ENEC UKCA	100 VAC	96 W	Constant Current Voltage	3750 VDC	90 %	AC DC Converter	305 V	OCP OTP OVP SCP	Wire Leads	2 A			IP65	Chassis Mount	UL 8750	Analog PWM	48 V
MEAN WELL USA Inc. ELG-100-C1050	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus ENEC	100 VAC	100 W	Constant Current	3750 VDC	90 %	AC DC Converter	305 V	OTP OVP SCP	Wire Leads	1.05 A	85 V	48 V	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-C700D2-3Y	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus EAC ENEC KC RCM	100 VAC	100 W	Constant Current	3750 VDC	90 %	AC DC Converter	305 V	OTP OVP SCP	Wire Leads	700 mA	143 V	71 V	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-C500B	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus ENEC	100 VAC	100 W	Constant Current	3750 VDC	91 %	AC DC Converter	305 V	OTP OVP SCP	Wire Leads	500 mA	200 V	100 V	IP67	Chassis Mount		Analog PWM
MEAN WELL USA Inc. ELG-100-24B	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus ENEC RCM	100 VAC	96 W	Constant Current Voltage	3750 VDC	88 %	AC DC Converter	305 V	OCP OTP OVP SCP	Wire Leads	4 A	24 V	12 V	IP67	Chassis Mount		Analog PWM
MEAN WELL USA Inc. ELG-100-C700A	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus ENEC	100 VAC	100 W	Constant Current	3750 VDC	90 %	AC DC Converter	305 V	OTP OVP SCP	Wire Leads	700 mA	143 V	71 V	IP65	Chassis Mount
MEAN WELL USA Inc. ELG-100-24D2-3Y	1.4 in	6.89 in	2.48 in	1	90 °C	-40 °C	CB CCC CE cURus EAC ENEC UKCA	100 VAC	96 W	Constant Current Voltage	3750 VDC	88 %	AC DC Converter	305 V	OCP OTP OVP SCP	Wire Leads	4 A			IP67	Chassis Mount	UL 8750	Analog PWM	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ELG-100-C1050 | Datasheet
