Description

General part information

3188 Series

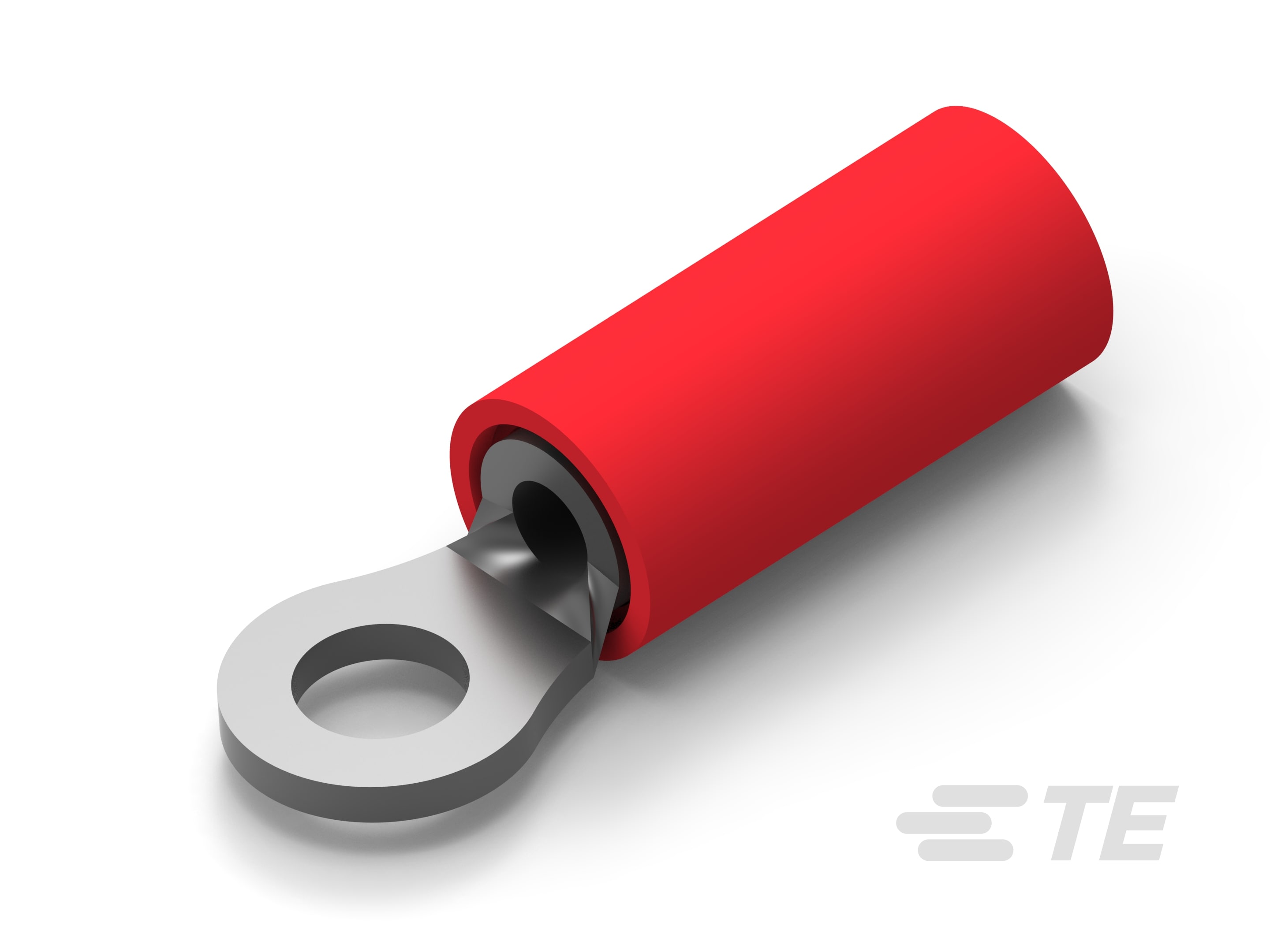

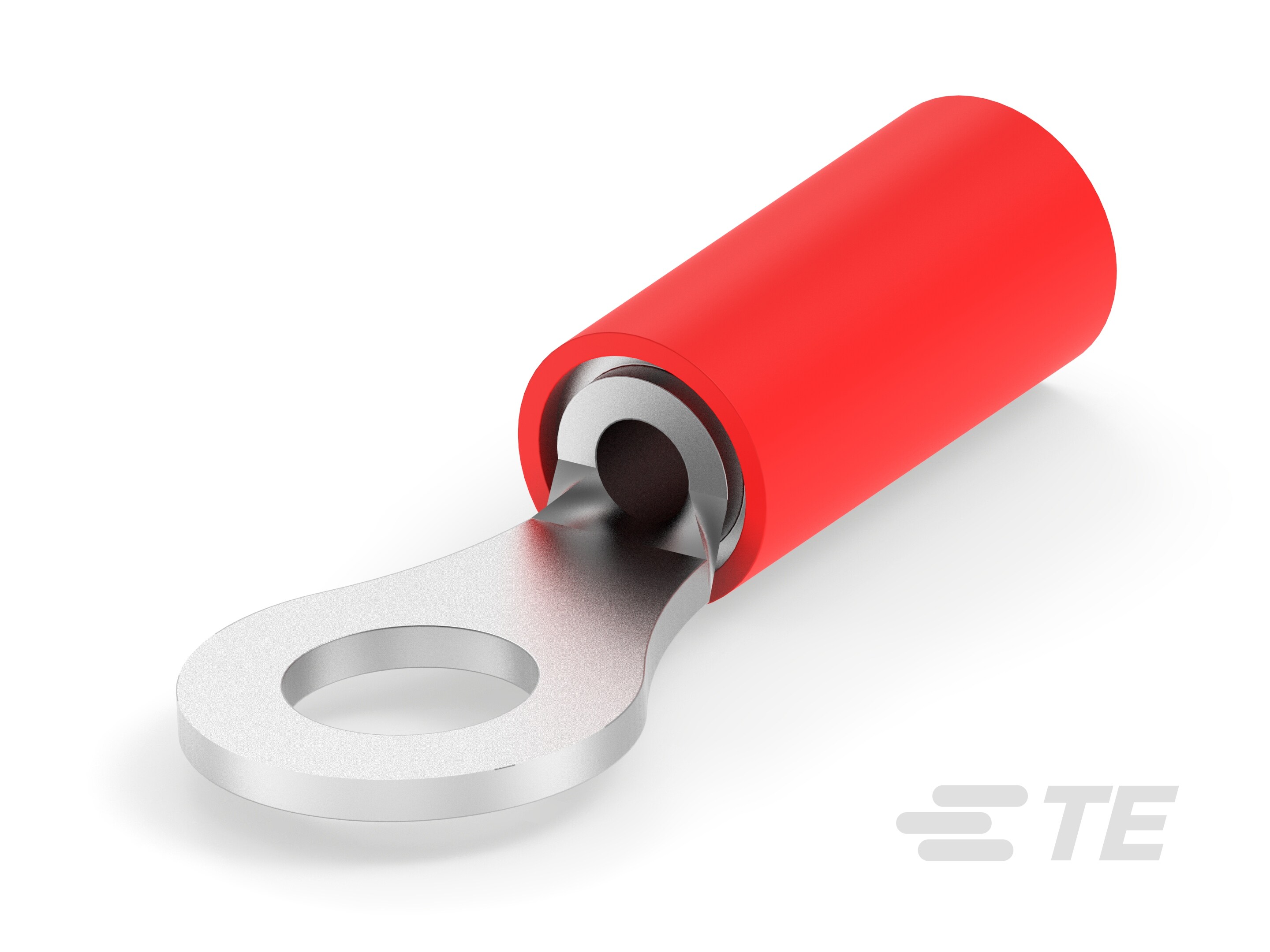

Closed Ring Tongue Terminal, 22 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification31886
ColorRed
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Insulation Diameter (Max)0.14 in
Insulation Diameter (Min)0.105 in
Length - Overall0.797 in
Material - InsulationPolyamide, PA, Nylon
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size8 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.281 in
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)16 AWG
