54201-T0802LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 2POS 2.54MM

54201-T0802LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 2POS 2.54MM

Description Specifications Series Pricing CAD Documents

Description

General part information

54201 Series

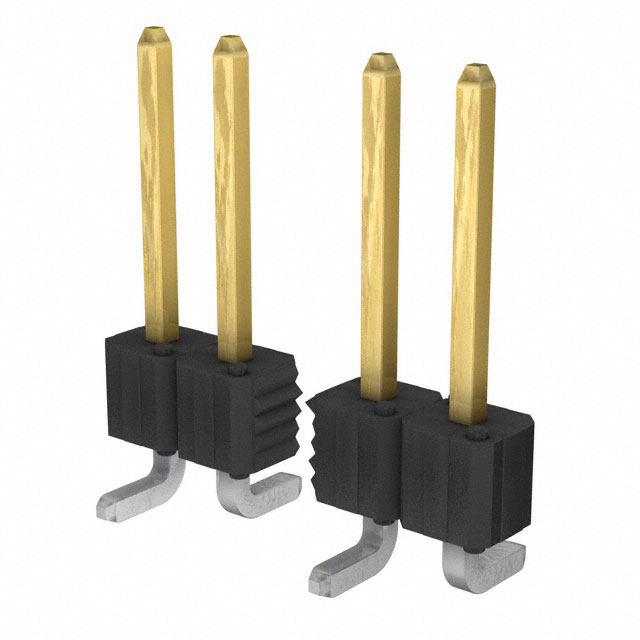

Connector Header Surface Mount 2 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	54201-T0802LF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

54201 Series

Part	Mounting Type	Insulation Color	Contact Shape	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Length - Mating	Material Flammability Rating	Style	Contact Material	Contact Type	Termination	Contact Finish - Post	Shrouding	Number of Rows	Number of Positions Loaded	Fastening Type	Number of Positions	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Features
Amphenol ICC (FCI) 54201-T0804LF	Surface Mount	Black	Square	0.1 in	Header	100 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	4	0.1 in	Tin	100 Ąin
Amphenol ICC (FCI) 54201-G3006LF	Surface Mount	Black	Square	0.1 in	Header	30 µin	0.318 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	6	0.1 in	Gold GXT™	100 Ąin
Amphenol ICC (FCI) 54201-G08-02A	Surface Mount	Black	Square	0.1 in	Header	30 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder		Unshrouded	1	All	Push-Pull	2	0.1 in	Gold GXT™		Pick and Place
Amphenol ICC (FCI) 54201-T0802LF	Surface Mount	Black	Square	0.1 in	Header	100 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	2	0.1 in	Tin	100 Ąin
Amphenol ICC (FCI) 54201-S08-17	Surface Mount	Black	Square	0.1 in	Header	15 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder		Unshrouded	1	All	Push-Pull	17	0.1 in	Gold GXT™
Amphenol ICC (FCI) 54201-S3008AA05LF	Surface Mount	Black	Square	0.1 in	Header	15 µin	0.318 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	8	0.1 in	Gold GXT™	100 Ąin	Pick and Place
Amphenol ICC (FCI) 54201-T0810ALF	Surface Mount	Black	Square	0.1 in	Header	100 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	10	0.1 in	Tin	100 Ąin	Pick and Place
Amphenol ICC (FCI) 54201-S0804ALF	Surface Mount	Black	Square	0.1 in	Header	15 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	4	0.1 in	Gold GXT™	100 Ąin	Pick and Place
Amphenol ICC (FCI) 54201-G0803PHLF	Surface Mount	Black	Square	0.1 in	Header	30 µin	0.23 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder	Tin	Unshrouded	1	All	Push-Pull	3	0.1 in	Gold GXT™	100 Ąin	Pick and Place
Amphenol ICC (FCI) 54201-T30-06	Surface Mount	Black	Square	0.1 in	Header	100 µin	0.318 in	UL94 V-0	Board	Phosphor Bronze	Male Pin	Solder		Unshrouded	1	All	Push-Pull	6	0.1 in	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

54201-T0802LF | Datasheet

bergstik productpresentation Other Related Document
