095-725-120M015

Active

Amphenol RF

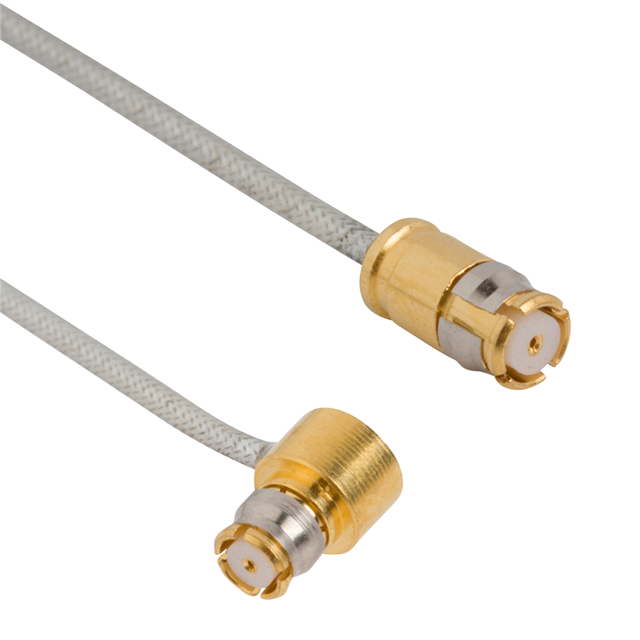

CBL ASSY SMP PLUG TO PLUG 5.906"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

095-725-120M015

Active

Amphenol RF

CBL ASSY SMP PLUG TO PLUG 5.906"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095-725-120M015

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Hand Formable .047
Color	Gray
Frequency - Max [Max]	20 GHz
Length [x]	150 mm
Length [x]	5.906 "
Overall Impedance	50 Ohms
Style	SMP to SMP

095-725 Series

...

Part	Color	2nd Contact Gender	Length	Length	2nd Connector	Style	Cable Type	2nd Connector Mounting Type	Overall Impedance	1st Connector	Frequency - Max [Max]	1st Contact Gender	1st Connector Mounting Type	Length [x]	Length [x]	Cable Type	Length [x]	Length
Amphenol RF 095-725-121-008	Gray	Male	8 in	203.2 mm	SMP Plug Right Angle	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug Right Angle	20 GHz	Male	Free Hanging (In-Line)
Amphenol RF 095-725-119-011	Gray	Male	11 "	279.4 mm	SMP Plug	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)
Amphenol RF 095-725-119M075	Gray	Male	29.53 "	750 mm	SMP Plug	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)
Amphenol RF 095-725-108-050	Gray	Female	5 in	127 mm	SMP Plug	SMP to SMP	Hand Formable .085	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Female	Free Hanging (In-Line)
Amphenol RF 095-725-120-018	Gray	Male			SMP Plug Right Angle	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol RF 095-725-118-009	Gray	Male	9 "	228.6 mm	SMP Plug Right Angle	SMP to SMP	Hand Formable	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)			0.086
Amphenol RF 095-725-120M010	Gray	Male			SMP Plug Right Angle	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)		0.1 m		3.937 in
Amphenol RF 095-725-118M005	Gray	Male			SMP Plug Right Angle	SMP to SMP	Hand Formable	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)		50 mm	0.086	1.969 in
Amphenol RF 095-725-119M200	Gray	Male	78.7 in	2 m	SMP Plug	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)					6.6 ft
Amphenol RF 095-725-120M015	Gray	Male			SMP Plug Right Angle	SMP to SMP	Hand Formable .047	Free Hanging (In-Line)	50 Ohms	SMP Plug	20 GHz	Male	Free Hanging (In-Line)		150 mm		5.906 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 34.17

Description

General part information

095-725 Series

Cable Assembly Coaxial SMP to SMP Hand Formable .047 5.906" (150.00mm)
